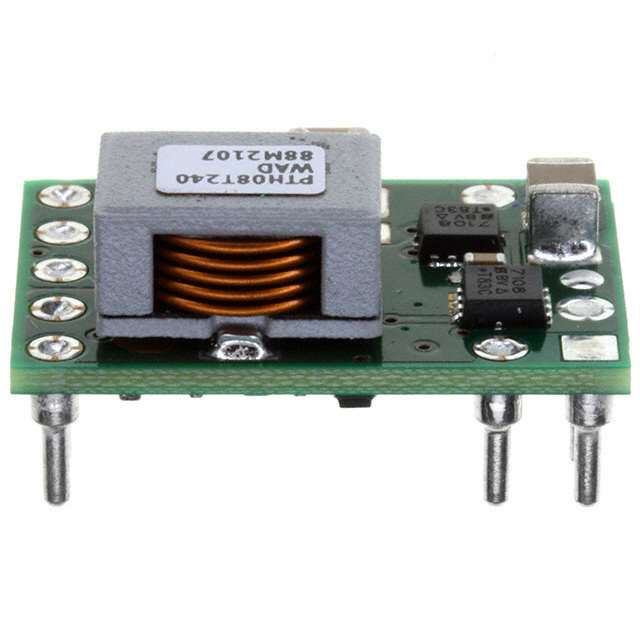

PTH08T240WAD
DC DC CONVERTER 0.69-5.5VManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 0.69 ~ 5.5V 10A 4.5V - 14V Input
Additional Information
Series: PTH08T240WRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 11-DIP Module |
| Size / Dimension | 0.87"" L x 0.62"" W x 0.34"" H (22.1mm x 15.7mm x 8.6mm) |
| Mounting Type | Through Hole |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 14V |
| Efficiency | 95% |
| Current - Output (Max) | 10A |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.69 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
