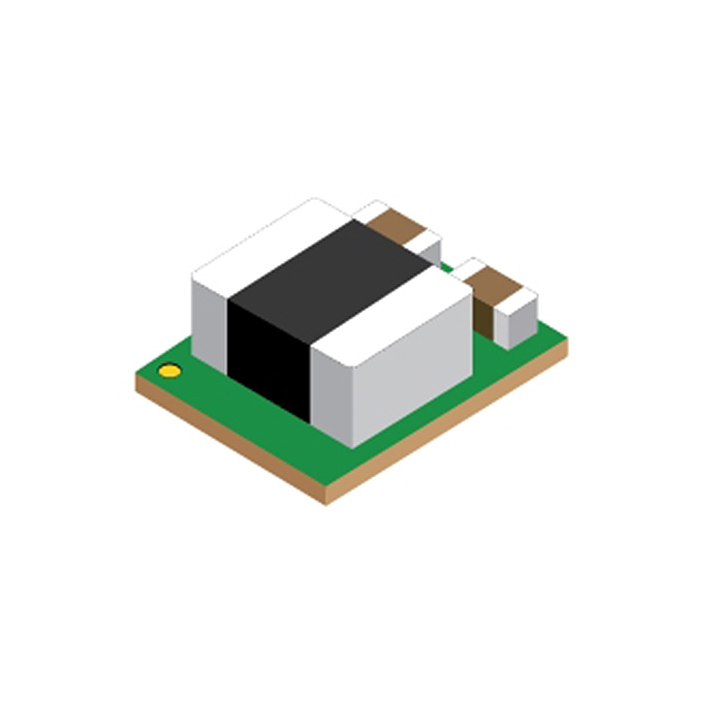

LMZM23601SILT
DC DC CONVERTER 1.2-15VManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 15V 1A 4V - 36V Input
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, SCP, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-LDFN Exposed Pad, Module |
| Size / Dimension | 0.15"" L x 0.12"" W x 0.06"" H (3.8mm x 3.0mm x 1.6mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 125°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Efficiency | - |
| Current - Output (Max) | 1A |
| Supplier Device Package | 10-uSIP (3.8x3) |
| Voltage - Input (Min) | 4V |
| Voltage - Output 1 | 1.2 ~ 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
