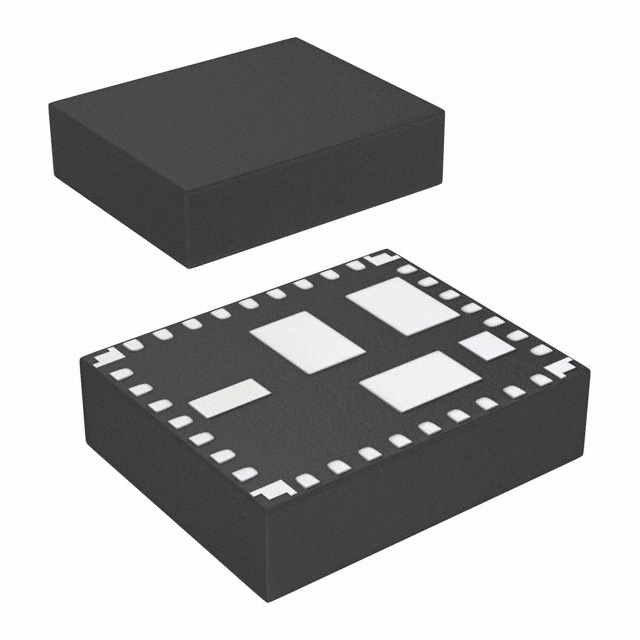

LMZ35003RKGR-P
PROTOTYPEManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 15V 2.5A 7V - 50V Input
Additional Information
Series: LMZ35003RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 41-BQFN Module |
| Size / Dimension | 0.43"" L x 0.35"" W x 0.11"" H (11.0mm x 9.0mm x 2.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 50V |
| Approval Agency | - |
| Efficiency | 93% |
| Current - Output (Max) | 2.5A |
| Supplier Device Package | 41-B1QFN (11x9) |
| Voltage - Input (Min) | 7V |
| Voltage - Output 1 | 2.5 ~ 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Control Features | - |
| Number of Outputs | 1 |
| Standard Number | - |
