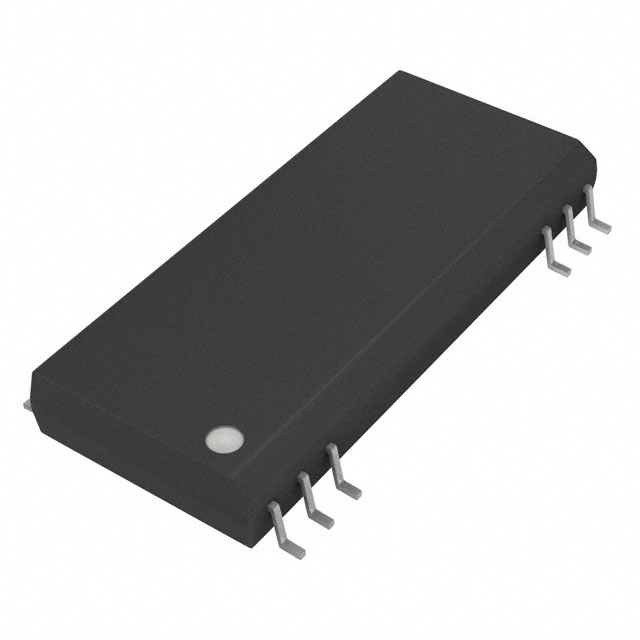

DCP020509U
DC DC CONVERTER 9V 2WManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 1 Output 9V 222mA 4.5V - 5.5V Input
Additional Information
Series: DCP02 (2W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP |
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width), 12 Leads |
| Size / Dimension | 0.71"" L x 0.30"" W x 0.10"" H (18.1mm x 7.6mm x 2.7mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Efficiency | 82% |
| Current - Output (Max) | 222mA |
| Supplier Device Package | 12-SOP |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Control Features | - |
| Power (Watts) | 2 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1 kV |
Request a Quote
