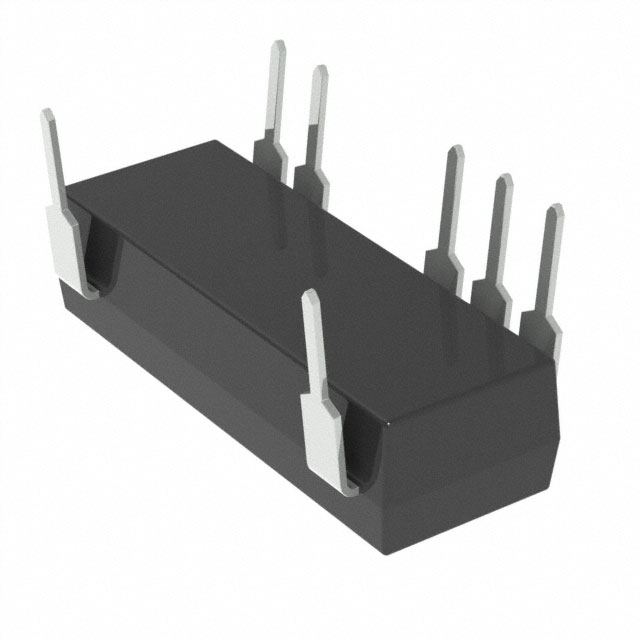

DCP010505DBP
DC DC CONVERTER +/-5V 1WManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Additional Information
Series: DCP01B (1W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 7 Leads |
| Size / Dimension | 0.78"" L x 0.33"" W x 0.21"" H (19.7mm x 8.3mm x 5.3mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 100°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5.5V |
| Efficiency | 81% |
| Current - Output (Max) | 100mA, 100mA |
| Supplier Device Package | 7-PDIP |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Control Features | Enable, Active High |
| Power (Watts) | 1 W |
| Number of Outputs | 2 |
| Voltage - Isolation | 1 kV |
Request a Quote
Clients Also Buy

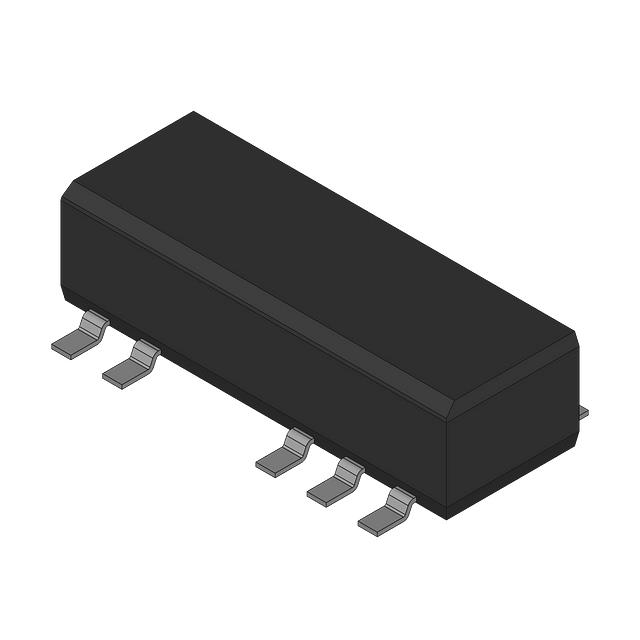

DCP010507DBP-U/7E4
