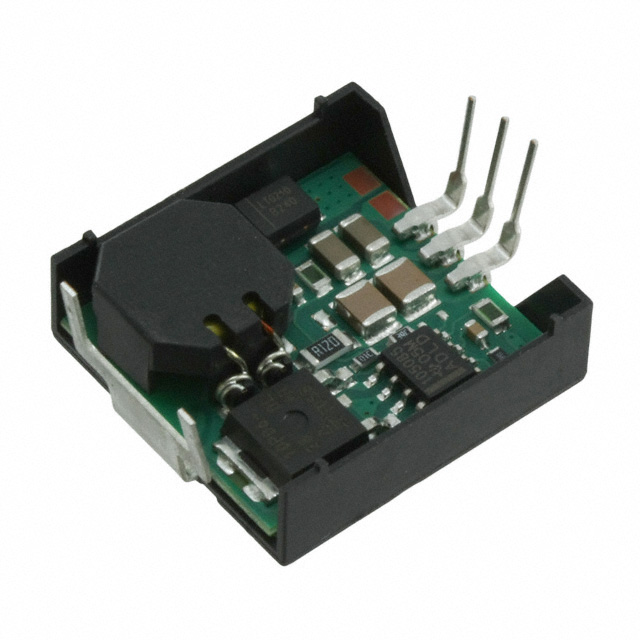

78SR112HC
DC DC CONVERTER 12VManufacturer: Texas Instruments
Categories: DC DC Converters
Quality Control: Learn More
Texas Instruments 78SR100 Series 78SR112HC is a non-isolated Point-of-Load DC-DC converter module outputting 12V at 1.5A. This component operates within an input voltage range of 14.5V to 30V, with a typical efficiency of 90%. Key features include Over-Temperature Protection (OTP) and Short-Circuit Protection (SCP). The module is designed for through-hole, right-angle mounting and comes in a 3-SIP module package. Its dimensions are 0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm). This component is suitable for Information Technology Equipment (ITE) applications in commercial sectors. It is supplied in tray packaging.
Additional Information
Series: 78SR100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Tray |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.94"" L x 0.90"" W x 0.31"" H (23.9mm x 22.9mm x 7.9mm) |
| Mounting Type | Through Hole, Right Angle |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 30V |
| Efficiency | 90% |
| Current - Output (Max) | 1.5A |
| Voltage - Input (Min) | 14.5V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Number of Outputs | 1 |
