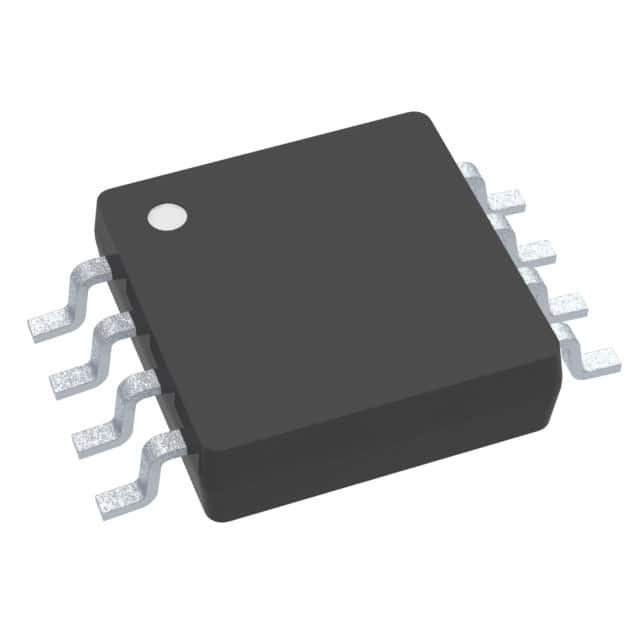

TLV3402IDGK
IC COMPARATOR 2 GEN PUR 8VSSOPManufacturer: Texas Instruments
Categories: Comparators
Quality Control: Learn More
Texas Instruments TLV3402IDGK is a dual, general-purpose CMOS comparator featuring an open-drain output. Operating from a single supply voltage range of 2.7V to 16V or a dual supply range of ±1.35V to ±8V, this component is suitable for applications requiring precise voltage threshold detection. It exhibits a low input bias current of 250pA maximum at 15V and a quiescent current of 950nA maximum. The device offers high common-mode rejection ratio (CMRR) of 88dB and power supply rejection ratio (PSRR) of 105dB. The propagation delay is a maximum of 300µs. Packaged in an 8-VSSOP, the TLV3402IDGK is designed for surface mounting and finds utility in industrial, automotive, and consumer electronics sectors. The output can source up to 10mA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | CMOS, Open-Drain |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 16V, ±1.35V ~ 8V |
| Supplier Device Package | 8-VSSOP |
| Propagation Delay (Max) | 300µs |
| Current - Quiescent (Max) | 950nA |
| Voltage - Input Offset (Max) | 3.6mV @ 15V |
| Current - Input Bias (Max) | 250pA @ 15V |
| Current - Output (Typ) | 10mA |
| CMRR, PSRR (Typ) | 88dB CMRR, 105dB PSRR |
| Hysteresis | - |
