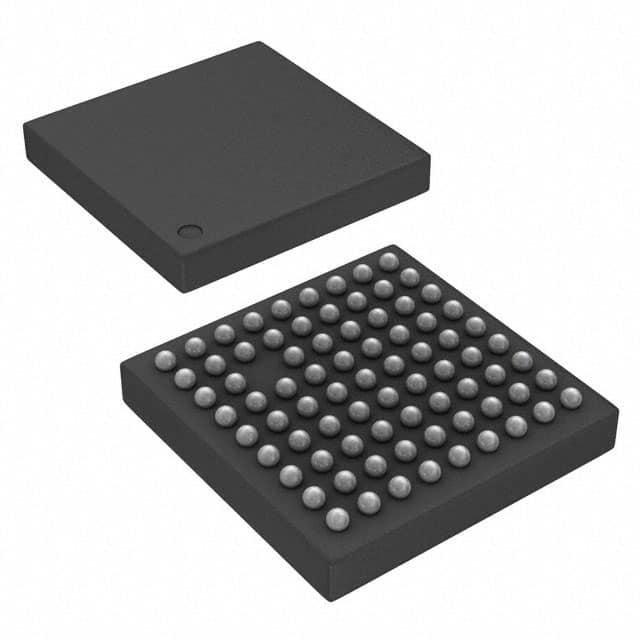

TLV320AIC33IZQE
IC STEREO AUDIO CODEC 80-BGAManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
The Texas Instruments TLV320AIC33IZQE is a highly integrated stereo audio codec featuring 2 ADCs and 2 DACs, each with a 24-bit resolution. This component utilizes Sigma Delta technology to achieve a typical dynamic range of 92 dB for ADCs and 100 dB for DACs, complemented by a signal-to-noise ratio of 92 dB (ADC) and 100 dB (DAC). The TLV320AIC33IZQE supports multiple data interfaces including I2C, Serial, and SPI™, facilitating flexible system integration. It is designed for surface mount application within an 80-VFBGA (80-BGA MICROSTAR JUNIOR (5x5)) package. Analog supply voltage ranges from 2.7V to 3.6V, while digital supply operates between 1.65V and 1.95V. This device is commonly employed in consumer electronics and portable audio devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 80-VFBGA |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | I2C, Serial, SPI™ |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 92 / 100 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 92 / 100 |
| Sigma Delta | Yes |
| Supplier Device Package | 80-BGA MICROSTAR JUNIOR (5x5) |
