TLV320AIC3254NZQER
IC DSP FIXED POINT BGAManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments TLV320AIC3254NZQER is a stereo audio CODEC featuring a 32-bit resolution. This device offers a typical dynamic range of 93 dB for ADCs and 100 dB for DACs, with a corresponding signal-to-noise ratio of 93 dB (ADC) and 100 dB (DAC). It utilizes a Sigma-Delta architecture for audio conversion. The TLV320AIC3254NZQER supports serial data interfaces and is packaged in an 80-VFBGA (MICROSTAR JUNIOR, 5x5) for surface mounting. Analog supply voltage ranges from 1.9V to 3.6V, while digital supply is between 1.26V and 1.95V. This component is suitable for applications requiring high-fidelity audio processing, including consumer electronics and communication systems. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

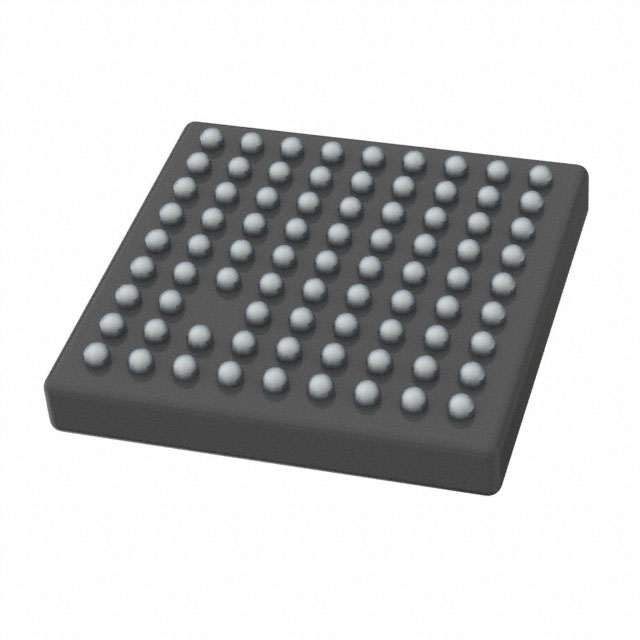

| Package / Case | 80-VFBGA |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.9V ~ 3.6V |
| Voltage - Supply, Digital | 1.26V ~ 1.95V |
| Resolution (Bits) | 32 b |
| Dynamic Range, ADCs / DACs (db) Typ | 93 / 100 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 93 / 100 |
| Sigma Delta | Yes |
| Supplier Device Package | 80-BGA MICROSTAR JUNIOR (5x5) |
