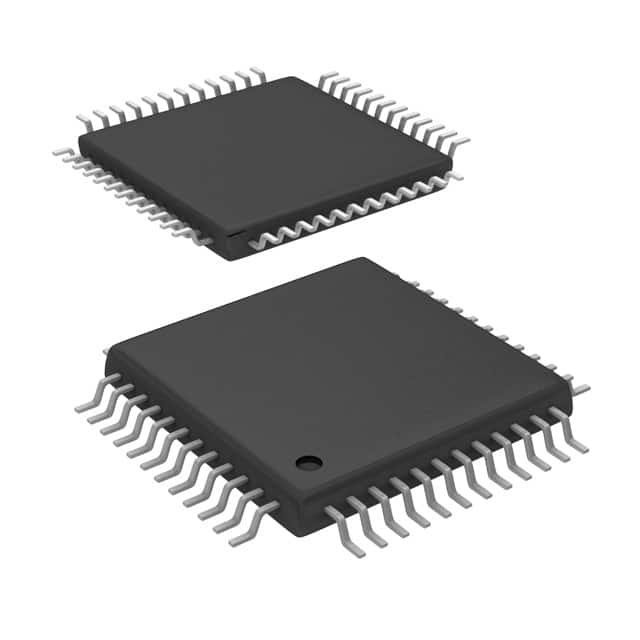

TLV320AIC24CPFBRG4
IC CODEC 16BIT DUAL PROG 48-TQFPManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments TLV320AIC24CPFBRG4 is a 16-bit stereo audio codec featuring a voice-band interface. This device supports serial data interfaces, offering two ADCs and two DACs with typical dynamic ranges of 87 dB for ADCs and 92 dB for DACs. The signal-to-noise ratios are rated at 84 dB for ADCs and 92 dB for DACs. Operating with analog supply voltages from 2.7V to 3.6V and digital supply voltages from 1.65V to 1.95V, it utilizes Sigma-Delta architecture. The TLV320AIC24CPFBRG4 is supplied in a 48-TQFP (7x7) surface-mount package, delivered on tape and reel. It is commonly deployed in consumer electronics, telecommunications, and audio processing applications. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Type | Voice-Band |
| Data Interface | Serial |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Resolution (Bits) | 16 b |
| Dynamic Range, ADCs / DACs (db) Typ | 87 / 92 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 84 / 92 |
| Sigma Delta | Yes |
| Supplier Device Package | 48-TQFP (7x7) |
