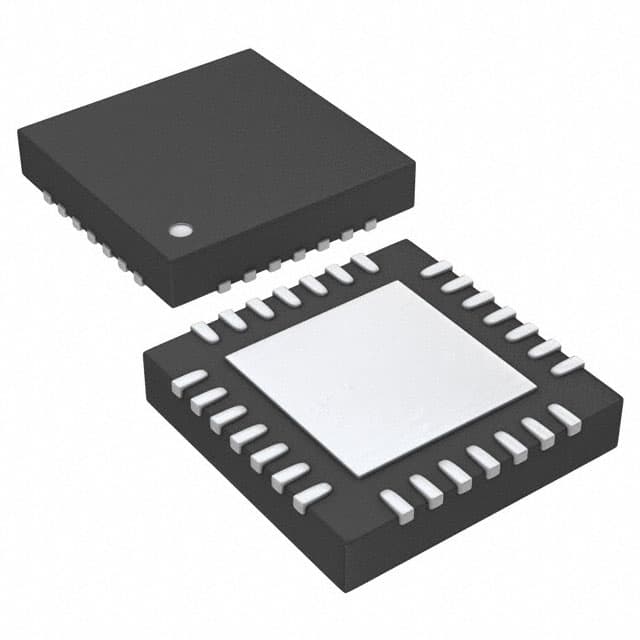

TLV320AIC23BIRHDR
IC STEREO AUDIO CODEC 28VQFNManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments TLV320AIC23BIRHDR is a stereo audio codec supporting 16, 20, 24, and 32-bit resolutions. This device features an I2C and serial data interface, packaged in a 28-VQFN (5x5) with exposed pad for surface mounting. It offers typical dynamic range of 90 dB for ADCs and DACs, with signal-to-noise ratios of 90 dB for ADCs and 100 dB for DACs. The TLV320AIC23BIRHDR operates with analog supply voltages from 2.7V to 3.6V and digital supply voltages from 1.42V to 3.6V. This Sigma Delta, stereo audio codec is commonly utilized in consumer electronics and portable audio applications. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | I2C, Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.42V ~ 3.6V |
| Resolution (Bits) | 16 b, 20 b, 24 b, 32 b |
| Dynamic Range, ADCs / DACs (db) Typ | 90 / 90 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 90 / 100 |
| Sigma Delta | Yes |
| Supplier Device Package | 28-VQFN (5x5) |
