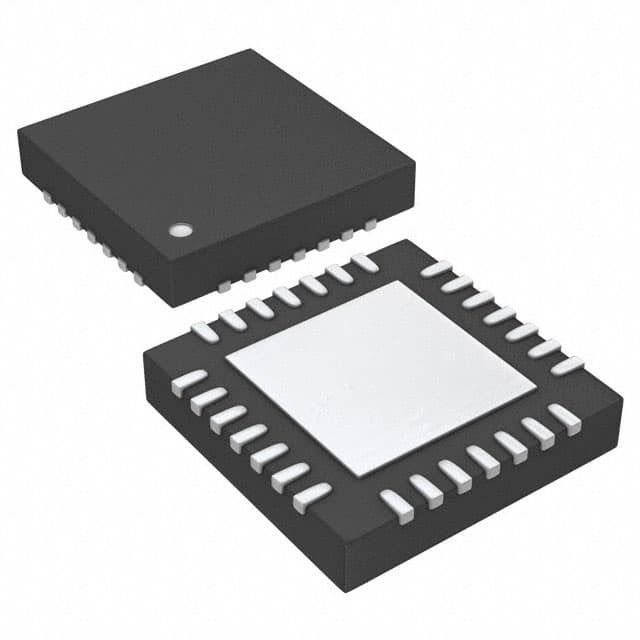

TLV320AIC23BIRHD
IC STEREO AUDIO CODEC 28VQFNManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments TLV320AIC23BIRHD is a stereo audio codec offering flexible resolution support for 16-bit, 20-bit, 24-bit, and 32-bit audio processing. This device features two analog-to-digital converters (ADCs) and two digital-to-analog converters (DACs) with a typical dynamic range of 90 dB for both channels and a signal-to-noise ratio (SNR) of 90 dB for ADCs and 100 dB for DACs. The TLV320AIC23BIRHD utilizes an I2C and serial data interface for control and audio data transfer. It operates with analog supply voltages from 2.7V to 3.6V and digital supply voltages from 1.42V to 3.6V. The component is housed in a 28-VQFN (5x5) exposed pad package, suitable for surface mounting. This codec is commonly deployed in applications such as consumer electronics, portable audio devices, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | I2C, Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.42V ~ 3.6V |
| Resolution (Bits) | 16 b, 20 b, 24 b, 32 b |
| Dynamic Range, ADCs / DACs (db) Typ | 90 / 90 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 90 / 100 |
| Sigma Delta | Yes |
| Supplier Device Package | 28-VQFN (5x5) |
