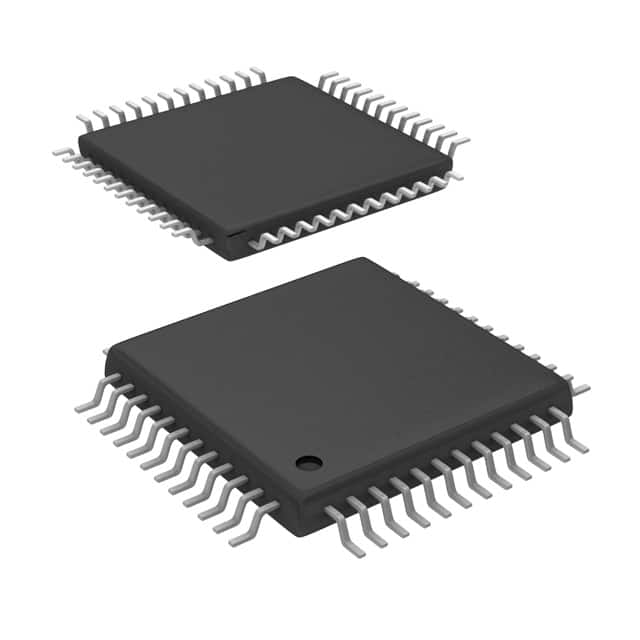

TLV320AIC21IPFBR
IC CODEC DUAL-CH PROG LP 48-TQFPManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments TLV320AIC21IPFBR is a dual-channel programmable audio codec. This voice-band interface component offers 16-bit resolution for both analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). It features a typical dynamic range of 87 dB for ADCs and 92 dB for DACs, with signal-to-noise ratios of 84 dB (ADC) and 92 dB (DAC). The device utilizes a serial data interface and a Sigma-Delta architecture. Supplied in a 48-TQFP (7x7) package for surface mounting, it operates with an analog supply voltage range of 2.7V to 3.6V and a digital supply range of 1.65V to 1.95V. The TLV320AIC21IPFBR is suitable for applications in portable communications, digital audio players, and voice recording systems. The component is available in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Type | Voice-Band |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Resolution (Bits) | 16 b |
| Dynamic Range, ADCs / DACs (db) Typ | 87 / 92 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 84 / 92 |
| Sigma Delta | Yes |
| Supplier Device Package | 48-TQFP (7x7) |
