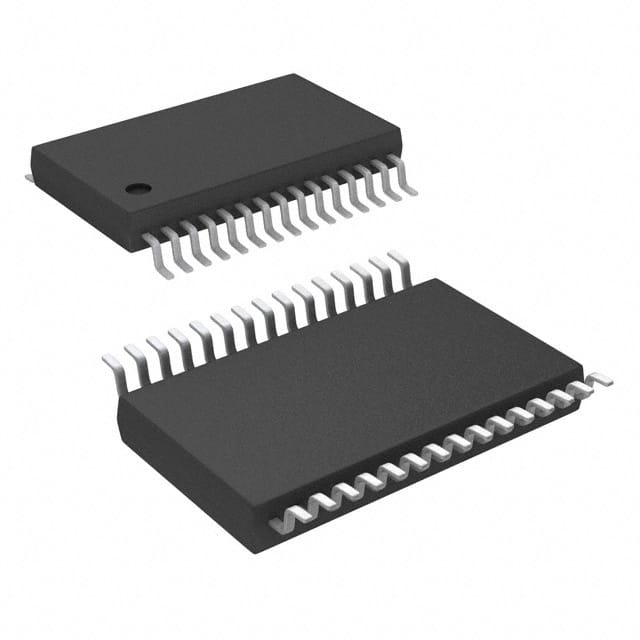

TLV320AIC12CDBTG4
IC CODEC 1CH 16 BIT 3.3V 30TSSOPManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments TLV320AIC12CDBTG4 is a 16-bit, single-channel voice-band codec featuring a serial data interface. This Sigma-Delta converter offers a typical dynamic range of 85 dB for ADCs and 92 dB for DACs, with signal-to-noise ratios of 88 dB (ADC) and 92 dB (DAC). It operates with analog supply voltages from 2.7V to 3.6V and digital supply voltages between 1.65V and 1.95V. The component is housed in a 30-TSSOP package designed for surface mounting. This device is suitable for applications in telecommunications and audio processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 30-TFSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | Voice-Band |
| Data Interface | Serial |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Resolution (Bits) | 16 b |
| Dynamic Range, ADCs / DACs (db) Typ | 85 / 92 |
| Number of ADCs / DACs | 1 / 1 |
| S/N Ratio, ADCs / DACs (db) Typ | 88 / 92 |
| Sigma Delta | Yes |
| Supplier Device Package | 30-TSSOP |
