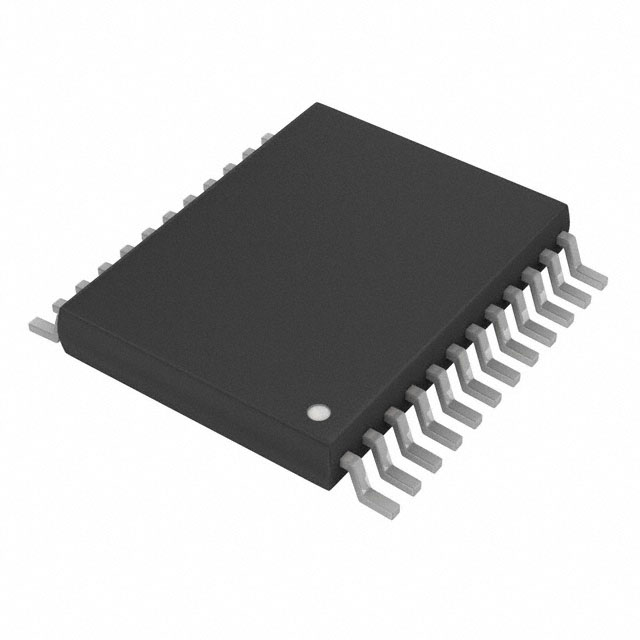

PCM3006T/2K
IC STEREO AUD CODEC 16BIT 24SSOPManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments PCM3006T-2K is a 16-bit stereo audio codec with a serial interface, housed in a 24-LSSOP package. This Sigma Delta converter offers 2 ADCs and 2 DACs, providing a typical dynamic range of 89 dB for ADCs and 93 dB for DACs. The signal-to-noise ratio also mirrors these values at 89 dB (ADCs) and 93 dB (DACs). It operates within an analog and digital supply voltage range of 2.7V to 3.6V and is designed for surface mount applications with a tape and reel packaging. This component finds use in applications such as consumer electronics and personal audio devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-LSSOP (0.24"", 6.00mm Width) |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Resolution (Bits) | 16 b |
| Dynamic Range, ADCs / DACs (db) Typ | 89 / 93 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 89 / 93 |
| Sigma Delta | Yes |
| Supplier Device Package | 24-SSOP |
