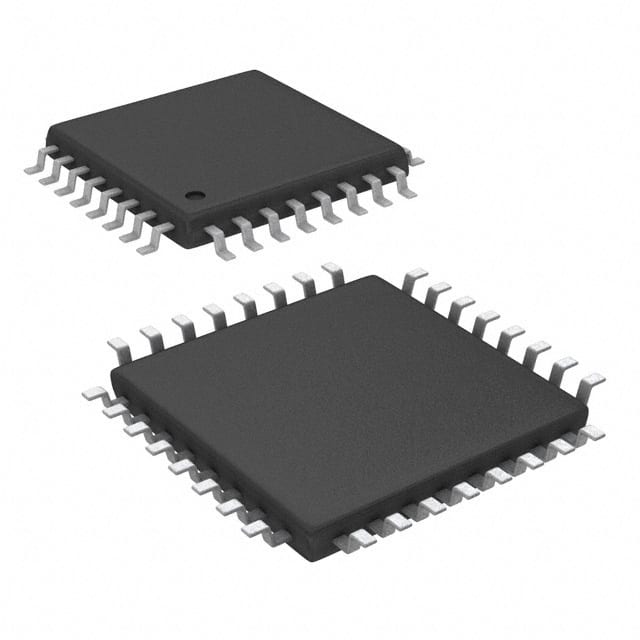

PCM2912PJTR
IC AUDIO CODEC 16BIT USB 32TQFPManufacturer: Texas Instruments
Categories: CODECS
Quality Control: Learn More
Texas Instruments' PCM2912PJTR is a 16-bit stereo audio codec featuring a USB interface in a 32-TQFP (7x7) package. This device supports a 16-bit resolution for both analog-to-digital converters (ADCs) and digital-to-analog converters (DACs), offering typical dynamic range and signal-to-noise ratios of 90 dB and 92 dB respectively. It incorporates Sigma Delta architecture. The PCM2912PJTR is designed for a wide operating temperature range of -25°C to 85°C and operates with analog and digital supply voltages between 4.35V and 5.25V. This component is commonly utilized in consumer electronics, personal computing, and audio peripherals. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TQFP |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | USB |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 4.35V ~ 5.25V |
| Voltage - Supply, Digital | 4.35V ~ 5.25V |
| Resolution (Bits) | 16 b |
| Dynamic Range, ADCs / DACs (db) Typ | 90 / 90 |
| Number of ADCs / DACs | 1 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 92 / 92 |
| Sigma Delta | Yes |
| Supplier Device Package | 32-TQFP (7x7) |
