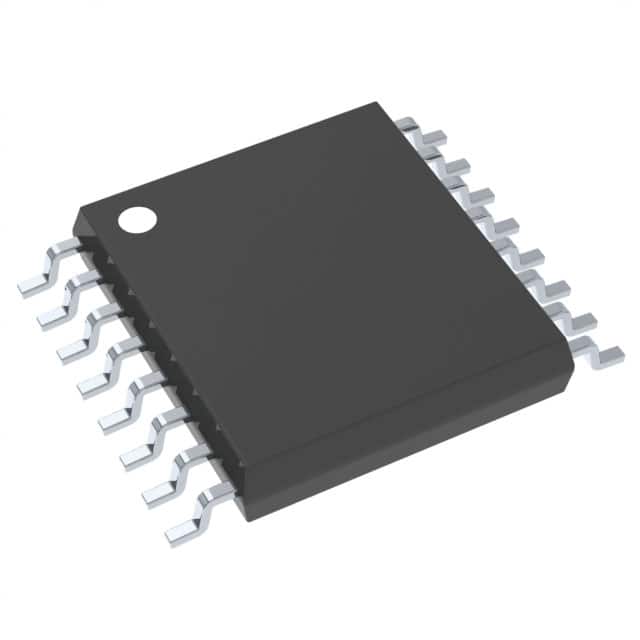

TRF3750IPW
IC PLL FREQ SYNTH 16TSSOPManufacturer: Texas Instruments
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Texas Instruments TRF3750IPW is a highly integrated PLL Frequency Synthesizer designed for demanding RF applications. This single-circuit device offers a maximum output frequency of 2.4GHz, making it suitable for wireless infrastructure, test and measurement equipment, and high-frequency communication systems. The TRF3750IPW features a clock input and clock output, with a configurable input-to-output ratio of 2:1. Its 16-TSSOP package ensures efficient board space utilization for surface mount applications. Operating within a voltage range of 3V to 5.5V and an ambient temperature range of -40°C to 85°C, this component provides robust performance across various environmental conditions. The device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 2.4GHz |
| Type | PLL Frequency Synthesizer |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.5V |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 16-TSSOP |
| PLL | No |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
