LMX2350SLBX
IC PLL FREQ SYNTH 24CSPManufacturer: Texas Instruments
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Texas Instruments' LMX2350SLBX is a PLLatinum™ series PLL Frequency Synthesizer. This 24-CSP (4.5x3.5) packaged component operates from a 2.7V to 5.5V supply and features a maximum output frequency of 2.5GHz, with a secondary output at 550MHz. The device supports CMOS and TTL inputs and CMOS outputs, with a specified input/output ratio of 3:3. It includes a PLL with bypass functionality, a divider/multiplier, and offers differential input/output. The LMX2350SLBX is suitable for surface mount applications and operates within an ambient temperature range of -40°C to 85°C. This frequency synthesizer finds application in areas such as wireless communication infrastructure, portable electronics, and test and measurement equipment. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: PLLatinum™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

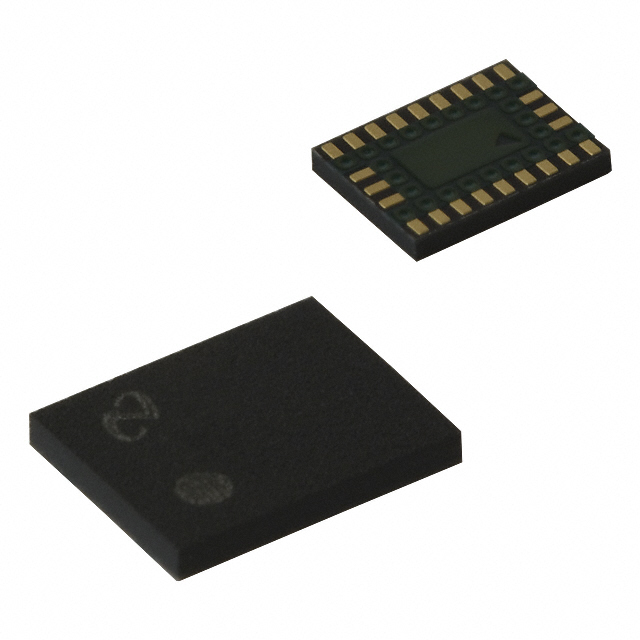

| Package / Case | 24-TFQFN, CSP |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Frequency - Max | 2.5GHz, 550MHz |
| Type | PLL Frequency Synthesizer |
| Input | CMOS, TTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Ratio - Input:Output | 3:3 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 24-CSP (4.5x3.5) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
