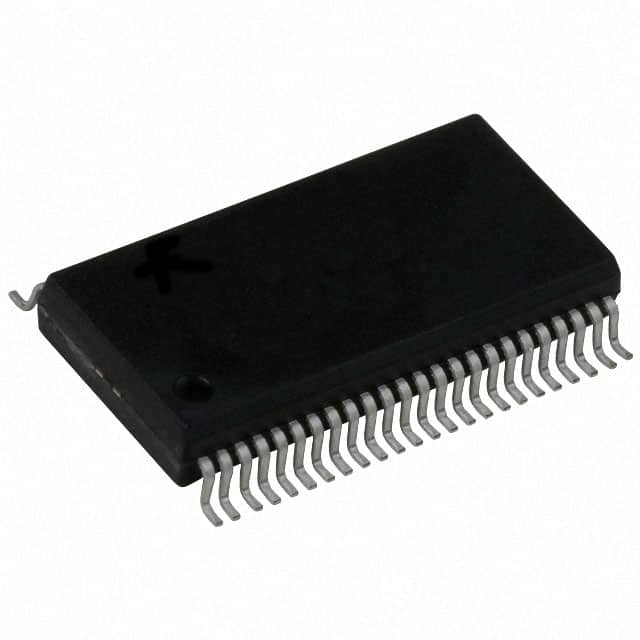

CDCV857ADGGR
IC PLL CLOCK DRIVER 48TSSOPManufacturer: Texas Instruments
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Texas Instruments CDCV857ADGGR is a PLL Clock Driver IC operating up to 180MHz. This component features a PLL with bypass functionality and supports differential clock input to output. The device offers a 1:10 ratio for input to output frequency division. It is housed in a 48-TFSOP package with a 0.240" (6.10mm) width, suitable for surface mount applications. Operating within a temperature range of 0°C to 85°C, the CDCV857ADGGR requires a supply voltage between 2.3V and 2.7V. This Texas Instruments clock driver finds application in various electronic systems requiring precise clock generation and distribution, including networking equipment and high-speed digital signal processing. The component is supplied on a Tape & Reel (TR) for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 180MHz |
| Type | PLL Clock Driver |
| Input | Clock |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 2.7V |
| Ratio - Input:Output | 1:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-TSSOP |
| PLL | Yes with Bypass |
| Divider/Multiplier | No/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
