CDCVF111FN
IC CLK BUFFER 1:9 650MHZ 28PLCCManufacturer: Texas Instruments
Categories: Clock Buffers, Drivers
Quality Control: Learn More

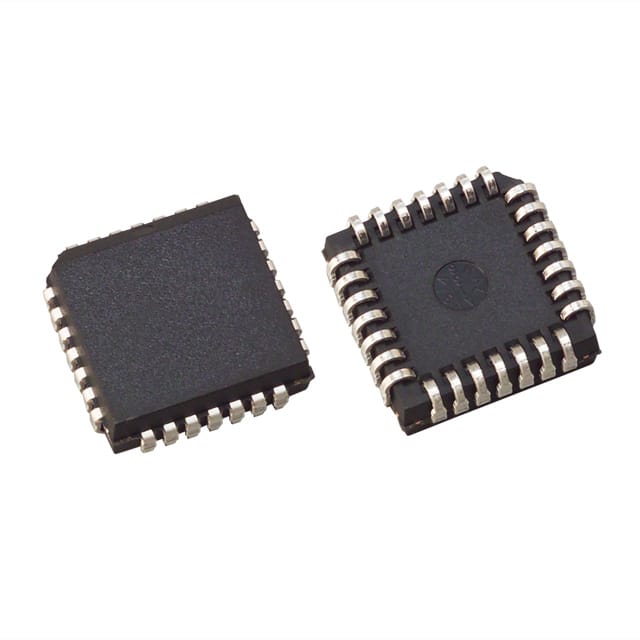

Texas Instruments CDCVF111FN is a high-performance, 1:9 clock fanout buffer designed for demanding timing distribution applications. This device features LVPECL inputs and outputs, operating at a maximum frequency of 650 MHz, making it suitable for high-speed digital systems. With a single input driving nine identical outputs, it ensures precise clock signal integrity across complex board layouts. The CDCVF111FN supports a differential input and output configuration, providing enhanced noise immunity. It is packaged in a 28-pin PLCC (Plastic Leaded Chip Carrier) for surface mounting and operates within a temperature range of -40°C to 85°C. This component finds application in telecommunications infrastructure, networking equipment, and high-performance computing systems where reliable clock distribution is critical. The supply voltage range is 3V to 3.6V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-LCC (J-Lead) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution) |
| Input | LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 1:9 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Frequency - Max | 650 MHz |
