SN75468NG4
TRANS 7NPN DARL 100V 0.5A DIPManufacturer: Texas Instruments
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Texas Instruments SN75468NG4 is a 7-NPN Darlington transistor array designed for demanding applications. This bipolar transistor array features a collector current (Ic) capability of up to 500mA and a collector-emitter breakdown voltage (Vce) of 100V. The device exhibits a Vce saturation of 1.6V at 500µA base current and 350mA collector current. Qualified to AEC-Q100 and operating at temperatures up to 150°C (TJ), the SN75468NG4 is suitable for automotive and industrial environments. It is provided in a through-hole, 16-PDIP package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Transistor Type | 7 NPN Darlington |
| Operating Temperature | 150°C (TJ) |
| Power - Max | - |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Frequency - Transition | - |
| Supplier Device Package | 16-PDIP |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

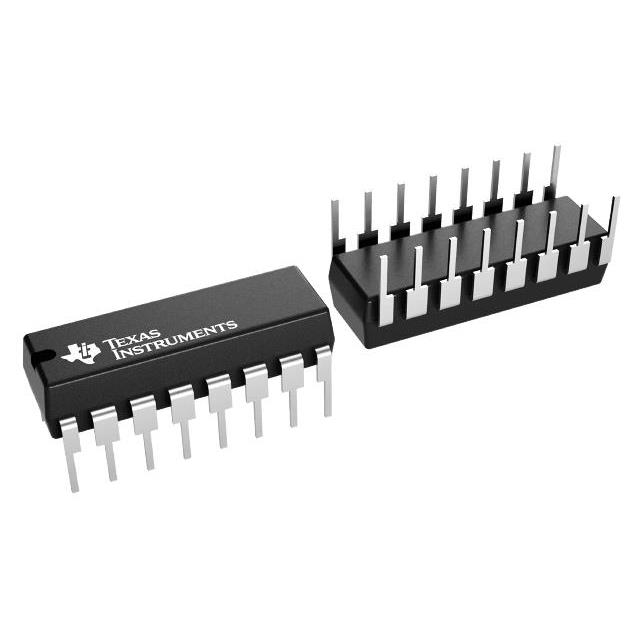

SN75468N-A
