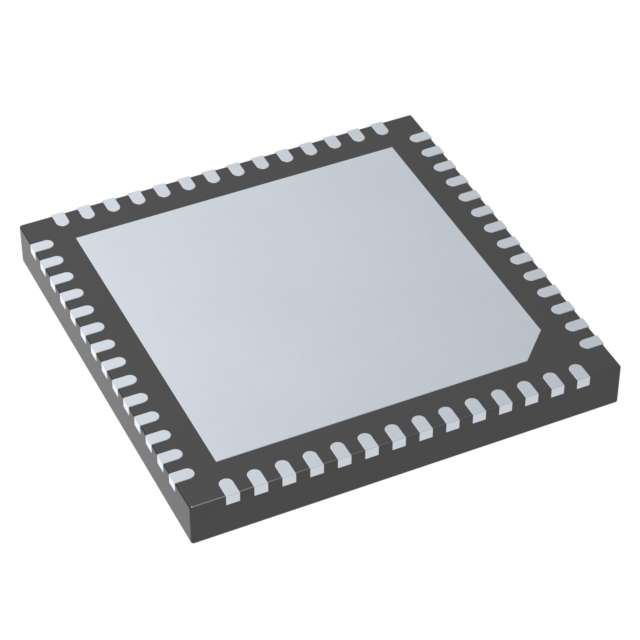

TPS65800RTQR
IC BATT MFUNC LI-ION 1CELL 56QFNManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments TPS65800RTQR is a highly integrated, multi-function power management IC designed for single-cell lithium-ion/polymer battery applications. This device consolidates battery charging, system power regulation, and peripheral power control into a compact 56-QFN (8x8) package, supplied on tape and reel. It features advanced battery charging capabilities with over-current and over-voltage fault protection. The TPS65800RTQR offers flexible power sequencing and regulation, supporting I2C and USB interfaces for system control and communication. Its robust design is suitable for demanding applications across consumer electronics, industrial automation, and portable medical devices, operating within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Function | Multi-Function Controller |
| Interface | I2C, USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 56-QFN (8x8) |
| Fault Protection | Over Current, Over Voltage |
