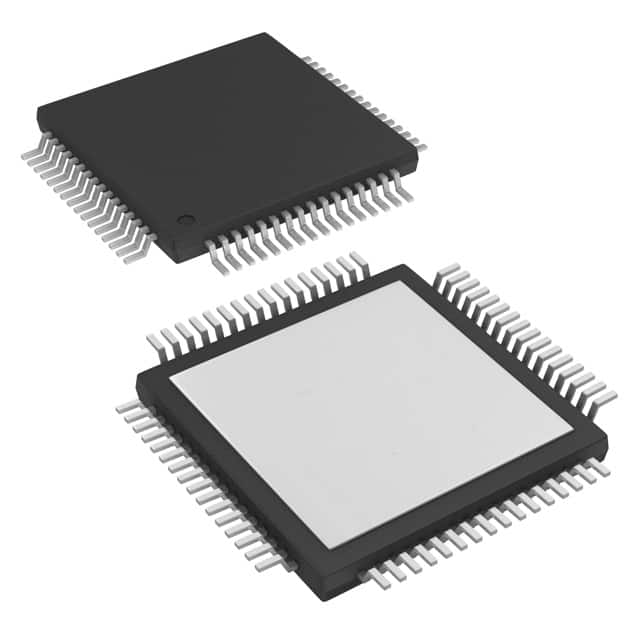

BQ76PL536PAPR
IC BAT MFUNC LI-ION 3-6C 64HTQFPManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
The Texas Instruments BQ76PL536PAPR is a battery multi-function controller IC specifically designed for Lithium Ion battery packs. This component manages 3 to 6 series cells, offering integrated fault protection against over/under voltage and over temperature conditions. Communication and control are facilitated via a serial peripheral interface (SPI). The BQ76PL536PAPR is housed in a 64-HTQFP (10x10) package, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C. This device finds utility in demanding applications within the automotive and industrial sectors requiring robust battery management. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-PowerTQFP |
| Number of Cells | 3 ~ 6 |
| Mounting Type | Surface Mount |
| Function | Multi-Function Controller |
| Interface | SPI |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 64-HTQFP (10x10) |
| Fault Protection | Over Temperature, Over/Under Voltage |
Request a Quote
