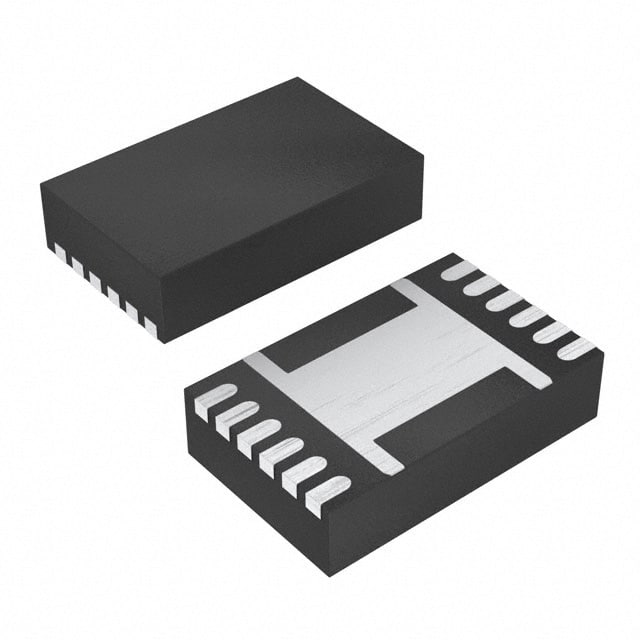

BQ28Z560DRZT-R1
IC BATT GAS GAUGE LIION 12SONManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments BQ28Z560DRZT-R1 is a sophisticated Impedance Track™ battery fuel gauge IC designed for single-cell Lithium Ion battery packs. This multi-function controller utilizes advanced impedance tracking technology for highly accurate state-of-charge (SoC) and state-of-health (SoH) monitoring. Featuring an I2C interface, it facilitates seamless communication for readouts and configuration. The device offers robust fault protection, including over-current, over/under-voltage, and short-circuit detection, enhancing system safety. Packaged in a compact 12-SON (2.5x4) with exposed pad for efficient heat dissipation, it is ideal for surface-mount applications. Operating across a wide temperature range of -40°C to 85°C, this component is prevalent in portable electronics, medical devices, and industrial equipment requiring precise battery management. The BQ28Z560DRZT-R1 is supplied in tape and reel packaging.
Additional Information
Series: Impedance Track™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 72 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Function | Multi-Function Controller |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 12-SON (2.5x4) |
| Fault Protection | Over Current, Over/Under Voltage, Short Circuit |
