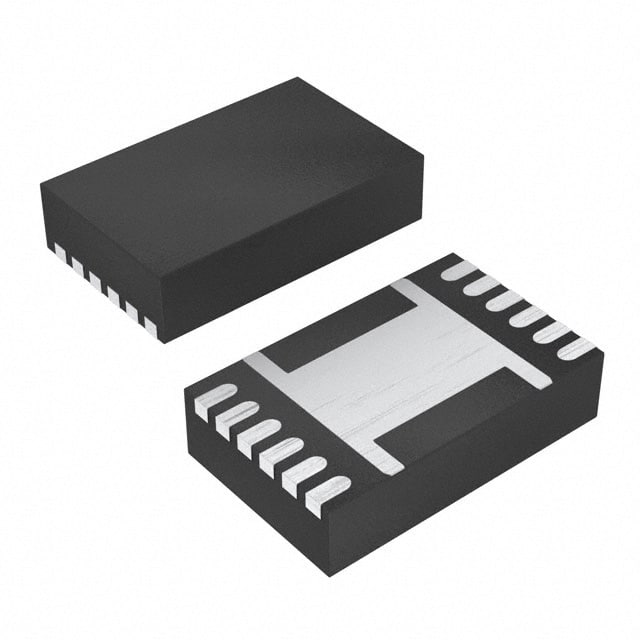

BQ28Z560DRZR-R1
IC BATT GAS GAUGE LIION 12SONManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments BQ28Z560DRZR-R1 is a sophisticated battery fuel gauge IC from the Impedance Track™ series. This multi-function controller is specifically engineered for Lithium Ion battery packs, supporting single-cell configurations. It offers advanced battery monitoring capabilities, including accurate state-of-charge (SoC), state-of-health (SoH), and remaining capacity estimations through its proprietary Impedance Track™ technology. The device integrates comprehensive fault protection features, encompassing over-current, over/under-voltage, and short-circuit protection. Communication is facilitated via an I2C interface, enabling seamless integration into various system architectures. The BQ28Z560DRZR-R1 is supplied in a 12-VFDFN exposed pad package, commonly referred to as a 12-SON (2.5x4), and is available on tape and reel. This component finds application in portable electronics, medical devices, and industrial equipment where precise battery management is critical.
Additional Information
Series: Impedance Track™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 72 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Function | Multi-Function Controller |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 12-SON (2.5x4) |
| Fault Protection | Over Current, Over/Under Voltage, Short Circuit |
