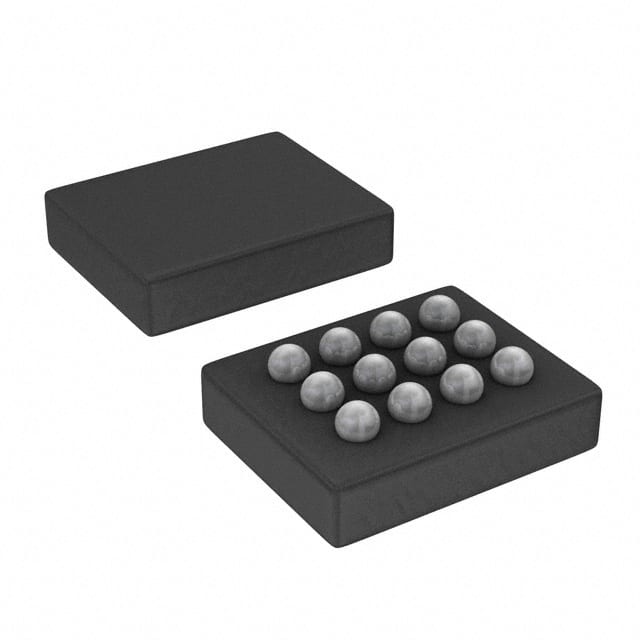

BQ27505YZGR-J1
IC BATT FUEL GAUGE LIION 12DSBGAManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments BQ27505YZGR-J1 is an advanced battery fuel gauge IC from the Impedance Track™ series, specifically designed for single-cell Lithium-Ion battery packs. This highly integrated component offers precise battery monitoring capabilities, crucial for applications requiring accurate State-of-Charge (SoC) and State-of-Health (SoH) estimation. Its 12-DSBGA package facilitates compact and efficient board design, suitable for surface mount assembly. The device communicates via an I2C interface, enabling seamless integration into various system architectures. The BQ27505YZGR-J1 is engineered to operate across a wide temperature range of -40°C to 85°C, ensuring reliable performance in demanding environments. This fuel gauge is instrumental in battery management systems across consumer electronics, portable medical devices, and industrial equipment where optimized power utilization and battery longevity are paramount.
Additional Information
Series: Impedance Track™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, DSBGA |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Function | Battery Monitor |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 12-DSBGA |
| Fault Protection | - |
