BQ24314DSJT
IC BATT PROTECTION LI-ION 12VSONManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments BQ24314DSJT is a highly integrated battery protection IC designed for single-cell Lithium Ion applications. This device provides comprehensive fault protection against overcurrent, overtemperature, and over/under-voltage conditions. Its compact 12-VSON (4x3) package with an exposed pad facilitates efficient thermal management and simplifies board layout. The BQ24314DSJT is manufactured with a surface mount type, delivered in Tape & Reel (TR) packaging. This component is crucial for ensuring the safe and reliable operation of battery-powered devices across various industries, including consumer electronics and industrial automation. The operating junction temperature range is 0°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

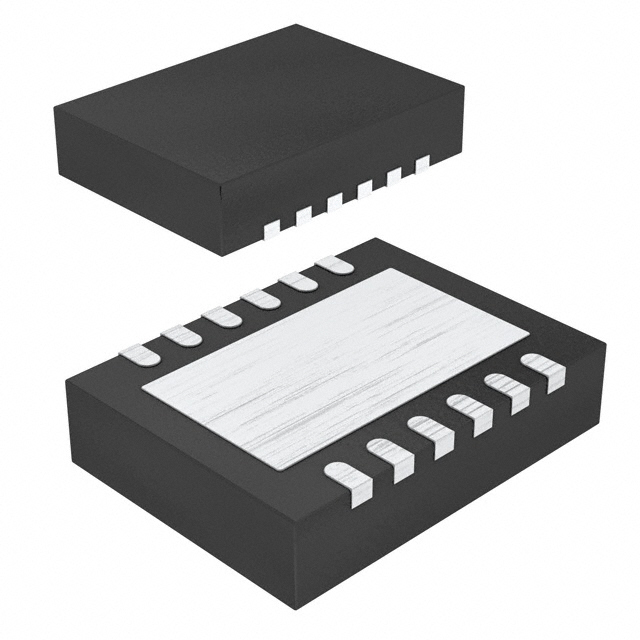

| Package / Case | 12-VFDFN Exposed Pad |
| Number of Cells | - |
| Mounting Type | Surface Mount |
| Function | Battery Protection |
| Interface | - |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 12-VSON (4x3) |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage |
