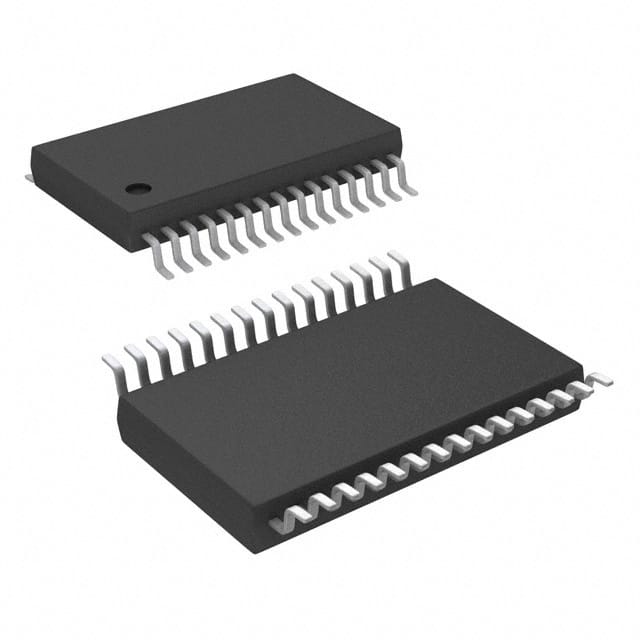

BQ20Z90DBT-V110
IC GAS GAUGE FOR BQ29330 30TSSOPManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments BQ20Z90DBT-V110, an Impedance Track™ series battery fuel gauge IC, is engineered for precise monitoring of Lithium Ion/Polymer battery packs. This device facilitates advanced battery management through its SMBus interface, enabling comprehensive data acquisition and control. Key fault protection features include over current, over temperature, over/under voltage, and short circuit detection, ensuring robust operation. Designed for surface mount applications within a 30-TSSOP package, it operates effectively across a temperature range of -40°C to 85°C. Applications span a wide spectrum including electric vehicles, portable medical devices, and industrial power systems.
Additional Information
Series: Impedance Track™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 30-TFSOP (0.173"", 4.40mm Width) |
| Number of Cells | - |
| Mounting Type | Surface Mount |
| Function | Battery Monitor |
| Interface | SMBus |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 30-TSSOP |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
