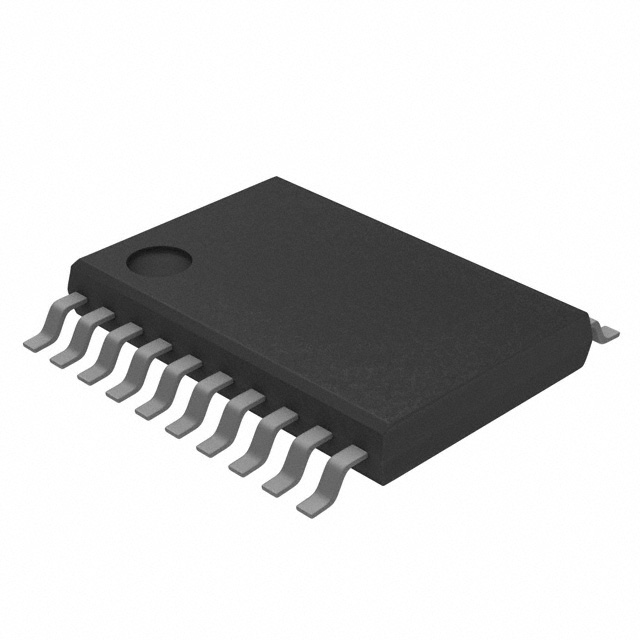

BQ20Z70PW-V150
IC GAS GAUGE LI-ION 2-4C 20TSSOPManufacturer: Texas Instruments
Categories: Battery Management
Quality Control: Learn More
Texas Instruments BQ20Z70PW-V150 is an Impedance Track™ Series battery fuel gauge IC designed for accurate monitoring of 2 to 4 series Lithium Ion/Polymer battery packs. This device offers comprehensive battery management features including over current, over temperature, over/under voltage, and short circuit fault protection. Communication is facilitated via the SMBus interface, enabling seamless integration into system architectures. The BQ20Z70PW-V150 is supplied in a 20-TSSOP surface mount package, suitable for compact designs. Its robust functionality makes it a key component in applications requiring precise battery state-of-charge and state-of-health reporting, commonly found in portable electronics, medical devices, and industrial equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: Impedance Track™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Number of Cells | 2 ~ 4 |
| Mounting Type | Surface Mount |
| Function | Battery Monitor |
| Interface | SMBus |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 20-TSSOP |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage, Short Circuit |
