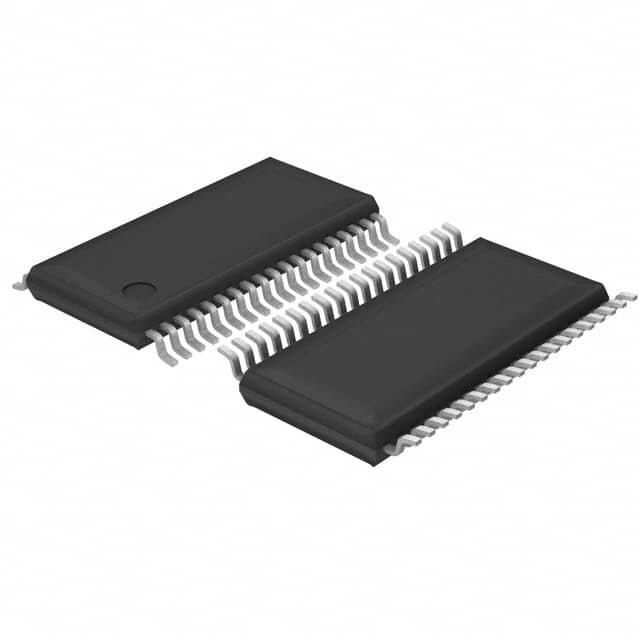

BQ20Z45DBT-R1

IC GAS GAUGE LI-ION 2-4C 38TSSOP

Quality Control: Learn More

Texas Instruments BQ20Z45DBT-R1 is a highly integrated Impedance Track™ gas gauge IC designed for robust battery management in Lithium Ion/Polymer applications. This multi-function controller supports 2 to 4 series cell configurations and offers advanced features including over current, over temperature, over/under voltage, and short circuit fault protection. Its surface mount 38-TSSOP package facilitates efficient board space utilization. The BQ20Z45DBT-R1 is ideal for applications within the consumer electronics, industrial, and automotive sectors where precise battery state monitoring and management are critical. It operates within a temperature range of -40°C to 85°C (TA).

Additional Information

Series: Impedance Track™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tube
Package / Case	38-TFSOP (0.173"", 4.40mm Width)
Number of Cells	2 ~ 4
Mounting Type	Surface Mount
Function	Multi-Function Controller
Interface	-
Operating Temperature	-40°C ~ 85°C (TA)
Battery Chemistry	Lithium Ion/Polymer
Supplier Device Package	38-TSSOP
Fault Protection	Over Current, Over Temperature, Over/Under Voltage, Short Circuit
