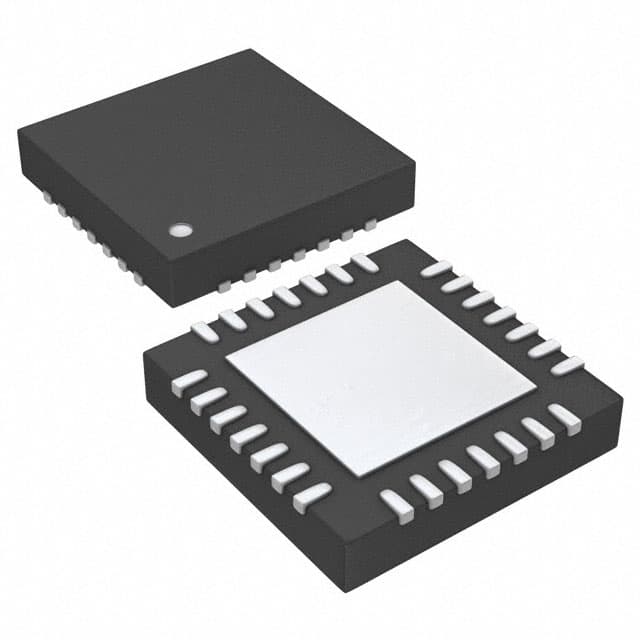

BQ24751RHDR
IC BAT CHG MULTCHEM 2-4CL 28VQFNManufacturer: Texas Instruments
Categories: Battery Chargers
Quality Control: Learn More
Texas Instruments BQ24751RHDR is a high-efficiency, multi-chemistry battery charge controller IC. This device supports 2 to 4 cell battery packs with a maximum battery pack voltage of 18.048V. It offers a programmable constant charge current up to 10A, with fault protection including over-current and over-voltage capabilities. The BQ24751RHDR operates from a supply voltage up to 24V and is housed in a 28-VQFN (5x5) exposed pad package, suitable for surface mount applications. Its robust design and advanced charging features make it ideal for use in portable equipment, industrial power tools, and electric vehicles. The operating temperature range is -55°C to 125°C (TJ). This component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Number of Cells | 2 ~ 4 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Battery Chemistry | Multi-Chemistry |
| Supplier Device Package | 28-VQFN (5x5) |
| Charge Current - Max | 10A |
| Programmable Features | - |
| Fault Protection | Over Current, Over Voltage |
| Voltage - Supply (Max) | 24V |
| Battery Pack Voltage | 18.048V (Max) |
| Current - Charging | Constant - Programmable |
