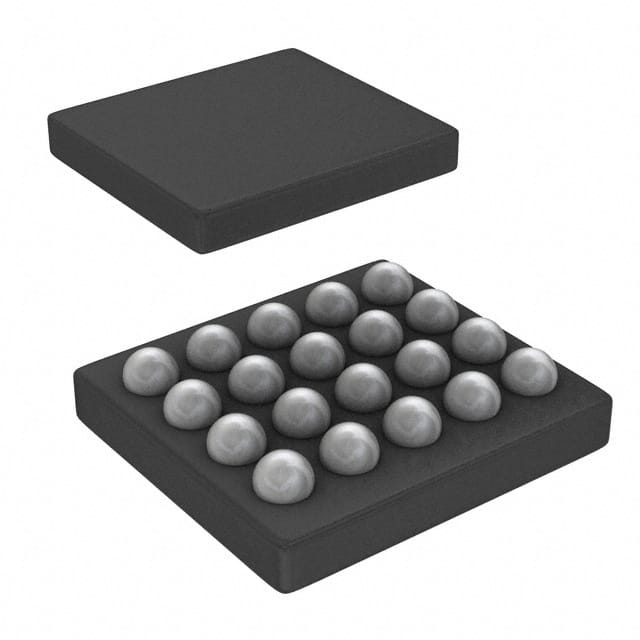

BQ24152YFFR

IC BATT CHG LI-ION 1CELL 20DSBGA

Quality Control: Learn More

Texas Instruments BQ24152YFFR: This single-cell lithium-ion/polymer battery charger IC, packaged in a 20-DSBGA, offers a programmable charge current up to 1.25A. It features an I2C interface for control and monitoring of key parameters including charge current, timer, and voltage. Fault protection is integrated for over-temperature and over-voltage conditions, ensuring robust operation. The device supports a maximum battery pack voltage of 4.44V and a supply voltage up to 6V. Designed for surface-mount applications, it operates reliably within a temperature range of -40°C to 85°C. This component is commonly utilized in portable electronics and power management systems. Supplied on tape and reel.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	20-UFBGA, DSBGA
Number of Cells	1
Mounting Type	Surface Mount
Interface	I2C
Operating Temperature	-40°C ~ 85°C (TA)
Battery Chemistry	Lithium Ion/Polymer
Supplier Device Package	20-DSBGA
Charge Current - Max	1.25A
Programmable Features	Current, Timer, Voltage
Fault Protection	Over Temperature, Over Voltage
Voltage - Supply (Max)	6V
Battery Pack Voltage	4.44V (Max)
Current - Charging	Constant - Programmable
