BQ24151AYFFR
IC BATT CHG LI-ION 1CELL 20DSBGAManufacturer: Texas Instruments
Categories: Battery Chargers
Quality Control: Learn More
Texas Instruments BQ24151AYFFR is a highly integrated, single-cell lithium-ion battery charger IC. This device features a programmable charge current up to 1.25A and supports charging to a maximum battery voltage of 4.44V. The BQ24151AYFFR utilizes an I2C interface for control and monitoring of charging parameters such as current, timer, and voltage, offering granular flexibility. Designed for robust operation, it includes over-temperature and over-voltage fault protection. The component is supplied in a 20-DSBGA package, suitable for surface mount applications. Its compact form factor and advanced charging capabilities make it ideal for portable electronics, automotive systems, and industrial equipment. The device operates across a temperature range of -40°C to 85°C and requires a supply voltage of up to 6V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

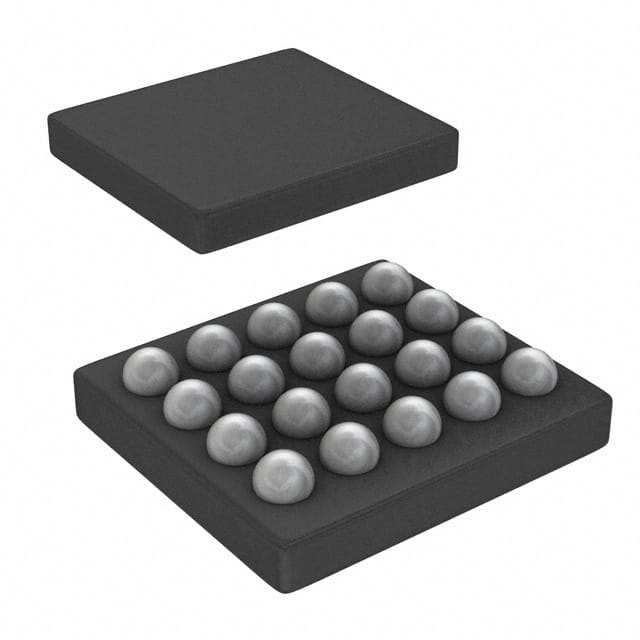

| Package / Case | 20-UFBGA, DSBGA |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 20-DSBGA |
| Charge Current - Max | 1.25A |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Over Temperature, Over Voltage |
| Voltage - Supply (Max) | 6V |
| Battery Pack Voltage | 4.44V (Max) |
| Current - Charging | Constant - Programmable |
