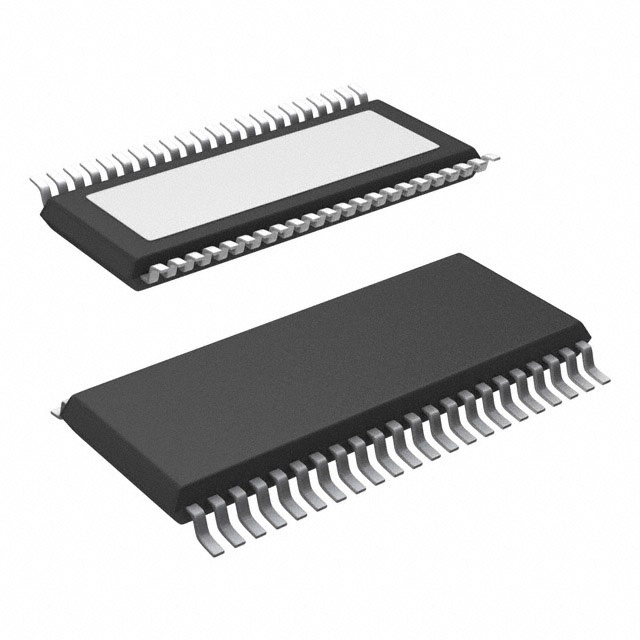

TPA3200D1DCPR

IC AMP CLASS D MONO 20W 44HTSSOP

Quality Control: Learn More

Texas Instruments TPA3200D1DCPR is a single-channel, 20W Class D audio amplifier IC housed in a 44-HTSSOP package. This device is optimized for high-fidelity audio reproduction, featuring a 1-channel mono output. Key integrated features include I2S digital audio input, mute functionality, and robust protection against short-circuit and thermal events, alongside a shutdown mode. The amplifier operates from a supply voltage range of 8V to 18V, delivering up to 20W into an 8-ohm load. Its surface mount design and operating temperature range of -40°C to 85°C make it suitable for various applications, including consumer audio, portable electronics, and automotive sound systems. The TPA3200D1DCPR is supplied on tape and reel for automated assembly processes.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)

Download Free CAD Model:

Technical Details:

Features	I2S, Mute, Short-Circuit and Thermal Protection, Shutdown
Packaging	Tape & Reel (TR)
Package / Case	44-PowerTFSOP (0.173"", 4.40mm Width)
Output Type	1-Channel (Mono)
Mounting Type	Surface Mount
Type	Class D
Operating Temperature	-40°C ~ 85°C (TA)
Voltage - Supply	8V ~ 18V
Max Output Power x Channels @ Load	20W x 1 @ 8Ohm
Supplier Device Package	44-HTSSOP
