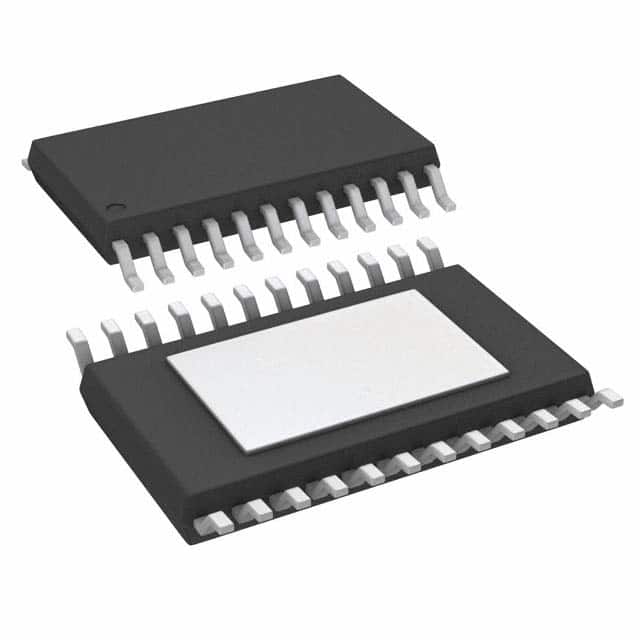

TPA3001D1PWPR
IC AMP CLASS D MONO 20W 24HTSSOPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments TPA3001D1PWPR is a mono Class D audio amplifier IC. This device delivers 20W into an 8-ohm load, operating from an 8V to 18V supply range. The TPA3001D1PWPR features differential inputs, integrated protection against short-circuits and thermal events, and a shutdown pin for power management. Depop circuitry is included to minimize turn-on/off transients. The component is housed in a 24-pin HTSSOP package, suitable for surface mounting. This amplifier finds application in consumer electronics, automotive audio systems, and general-purpose audio amplification where high efficiency and compact design are critical. The TPA3001D1PWPR is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 8V ~ 18V |
| Max Output Power x Channels @ Load | 20W x 1 @ 8Ohm |
| Supplier Device Package | 24-HTSSOP |
