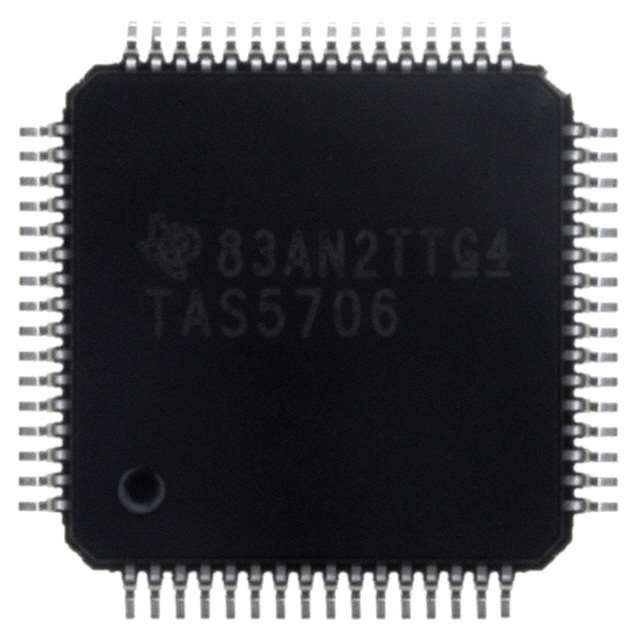

TAS5706PAPR
IC AMP D DUAL/QUAD 20.6W 64HTQFPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments TAS5706PAPR is a highly efficient Class D audio amplifier IC. This device offers flexible configuration as either a 2-channel stereo or 4-channel quad amplifier, delivering up to 20.6W per channel into an 8-ohm load. It features digital inputs, I2C and I2S interfaces for control and audio streaming, along with essential protection mechanisms including short-circuit and thermal protection, mute, and shutdown functionalities. Volume control is also integrated. The TAS5706PAPR is housed in a 64-HTQFP (10x10) surface-mount package. Its operating temperature range is 0°C to 85°C (TA), and it requires a supply voltage between 10V and 26V. This component is suitable for applications in consumer electronics and automotive audio systems. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Contro |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-PowerTQFP |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 26V |
| Max Output Power x Channels @ Load | 20.6W x 2 @ 8Ohm |
| Supplier Device Package | 64-HTQFP (10x10) |
Request a Quote
