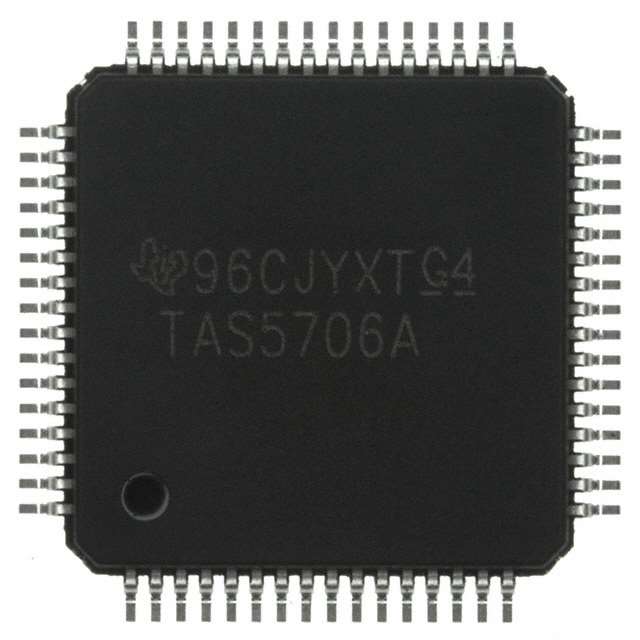

TAS5706APAPR
IC AMP AUDIO PWR 20.6W D 64TQFPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments TAS5706APAPR is a Class D audio amplifier IC designed for high-fidelity sound reproduction. This 64-HTQFP (10x10) package device offers flexible output configurations, supporting either 2-channel stereo or 4-channel quad operation. Each channel can deliver up to 20.6W into an 8-ohm load, making it suitable for demanding audio applications. Key features include digital inputs, I2C and I2S interfaces for precise control, and integrated protection mechanisms such as short-circuit and thermal protection. Additional functionalities like depop, mute, shutdown, and volume control enhance its usability in consumer electronics, automotive audio systems, and professional audio equipment. The TAS5706APAPR operates within a supply voltage range of 10V to 26V and is packaged on a tape and reel for surface mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Contro |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-PowerTQFP |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 26V |
| Max Output Power x Channels @ Load | 20.6W x 2 @ 8Ohm |
| Supplier Device Package | 64-HTQFP (10x10) |
