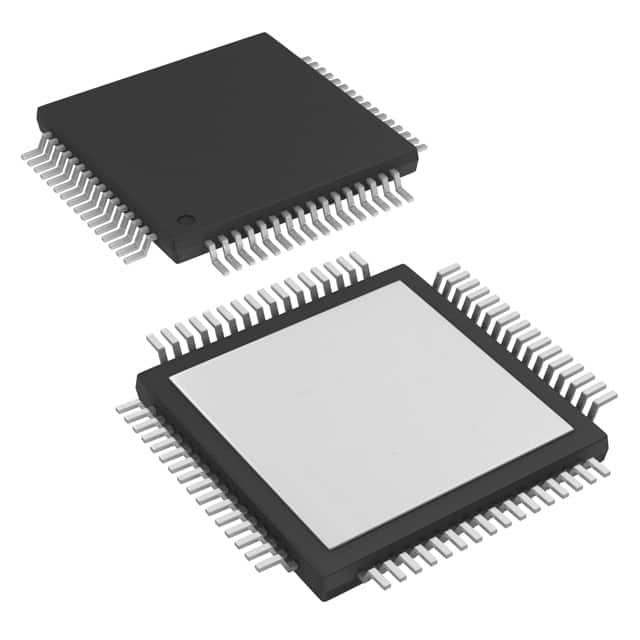

TAS5706APAPG4
IC AMP D DUAL/QUAD 20.6W 64HTQFPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments TAS5706APAPG4 is a 2-channel (stereo) or 4-channel (quad) Class D amplifier in a 64-HTQFP (10x10) package. This device offers a maximum output power of 20.6W per channel into an 8 Ohm load. Key features include digital inputs, I2C and I2S interfaces, depop, mute, shutdown, and volume control functions. The amplifier is designed with comprehensive protection against short-circuit and thermal events. Operating within a supply voltage range of 10V to 26V, the TAS5706APAPG4 is suitable for surface mount applications and operates within an ambient temperature range of 0°C to 85°C. This component finds application in consumer electronics, automotive audio systems, and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Contro |
| Packaging | Bulk |
| Package / Case | 64-PowerTQFP |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 26V |
| Max Output Power x Channels @ Load | 20.6W x 2 @ 8Ohm |
| Supplier Device Package | 64-HTQFP (10x10) |
Request a Quote
Clients Also Buy

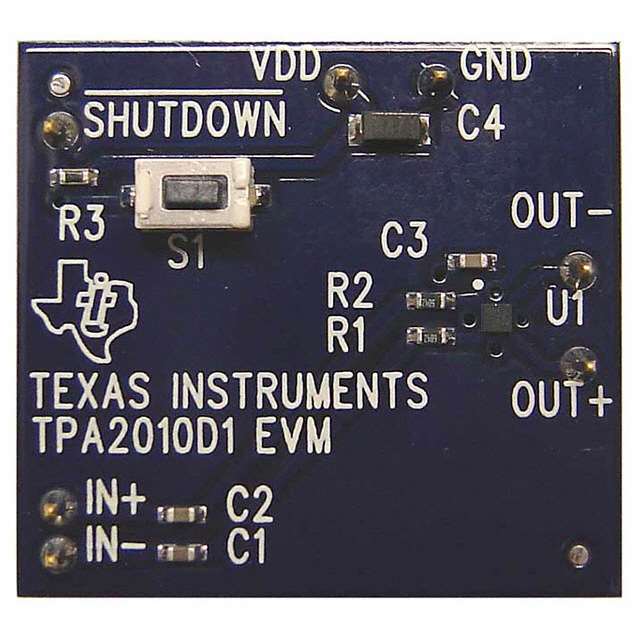

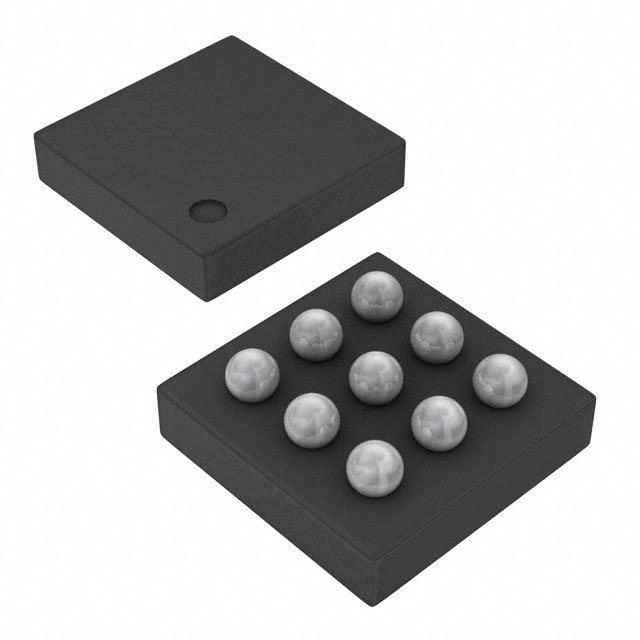

TPA2010D1YEFT
