TAS5701PAP-P
20-W STEREO, 0- TO 21-V SUPPLY,Manufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More

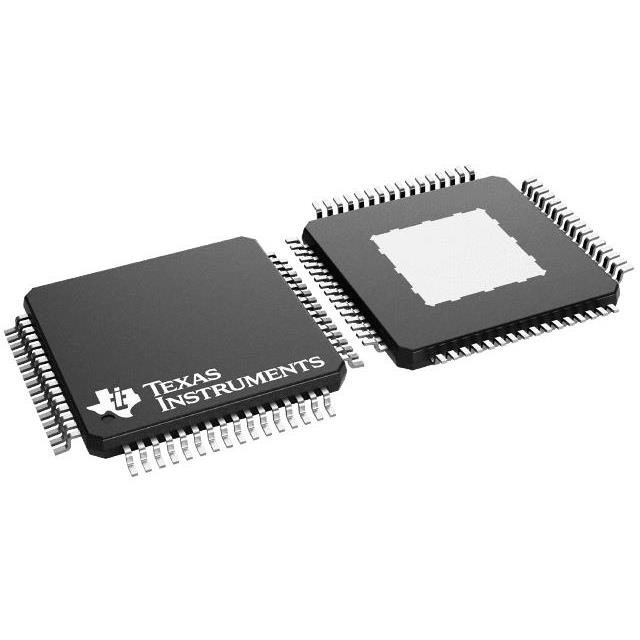

Texas Instruments TAS5701PAP-P is a 20W stereo, 0- to 21-V supply Class D amplifier. This 3-channel output device is packaged in a 64-HTQFP (10x10) for surface mounting. Designed for efficient audio amplification, it operates with supply voltages ranging from 3V to 3.6V and 10.8V to 13.2V. The TAS5701PAP-P is suitable for applications requiring high-quality audio output, including consumer electronics and automotive audio systems. Its Class D architecture ensures high efficiency, minimizing power dissipation. The device supports a maximum output power of 20W per channel into an 8-ohm load. Operating temperature is specified from 0°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 64-PowerTQFP |
| Output Type | 3-Channel |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 3.6V, 10.8V ~ 13.2V |
| Max Output Power x Channels @ Load | 20W x 2 @ 8Ohm |
| Supplier Device Package | 64-HTQFP (10x10) |
