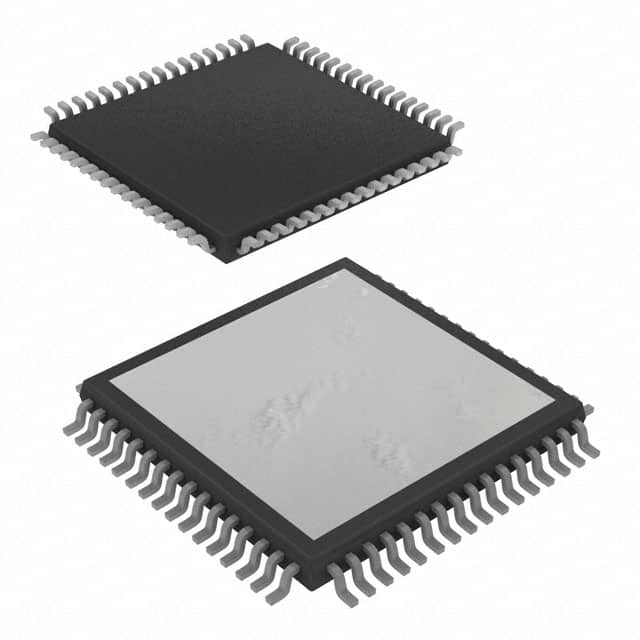

TAS5631PHDR
IC AMP D MONO/STER 600W 64HTQFPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments TAS5631PHDR from the PurePath™ HD series is a high-fidelity Class D audio amplifier IC. This device supports both mono and stereo configurations, delivering up to 600W into a 2-ohm load in mono mode and 300W into a 4-ohm load in stereo mode. It features digital inputs, integrated protection circuitry including short-circuit and thermal protection, and a shutdown pin for power management. The TAS5631PHDR is available in a 64-HTQFP (14x14) exposed pad package, suitable for surface mounting. Its robust design and high power output make it ideal for demanding audio applications across consumer electronics, professional audio systems, and automotive sound. The operating temperature range is 0°C to 70°C.
Additional Information
Series: PurePath™ HDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 25V ~ 52.5V |
| Max Output Power x Channels @ Load | 600W x 1 @ 2Ohm; 300W x 2 @ 4Ohm |
| Supplier Device Package | 64-HTQFP (14x14) |
