TAS5611PHDR
IC AMP D MONO/STER 250W 64HTQFPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More

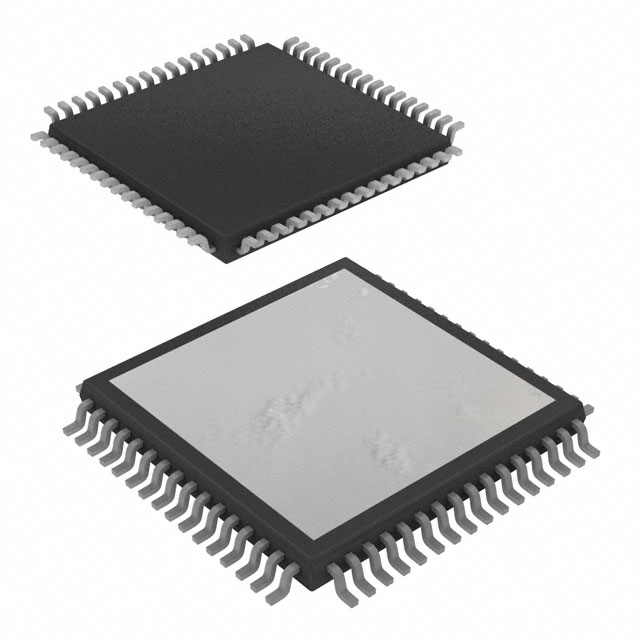

Texas Instruments TAS5611PHDR is a PurePath™ HD series Class D amplifier IC. This device offers versatile audio amplification, supporting either 1-channel (mono) or 2-channel (stereo) configurations. It delivers a robust 250W into a 2-ohm load in mono mode and 165W into a 3-ohm load for stereo operation. The TAS5611PHDR features include depop circuitry, differential inputs, and integrated short-circuit and thermal protection. It also incorporates a shutdown feature for power management. This surface mount component is supplied in a 64-HTQFP (14x14) package, presented on a tape and reel. Its operating temperature range is 0°C to 70°C (TA), and it operates from a supply voltage of 16V to 34.1V. The TAS5611PHDR is commonly found in high-power audio systems and professional audio equipment.
Additional Information
Series: PurePath™ HDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 16V ~ 34.1V |
| Max Output Power x Channels @ Load | 250W x 1 @ 2Ohm; 165W x 2 @ 3Ohm |
| Supplier Device Package | 64-HTQFP (14x14) |
Request a Quote
