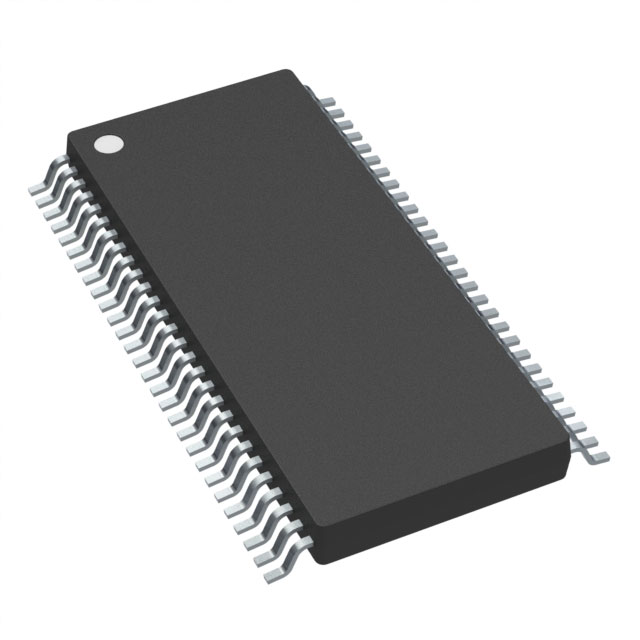

TAS5602DCA
IC AMP D DUAL/QUAD 20W 56HTSSOPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments TAS5602DCA is a high-performance Class D amplifier IC designed for dual-channel (stereo) or quad-channel (4-channel) audio applications. This device, available in a 56-HTSSOP package, offers flexible output configurations, delivering up to 20W per channel into an 8-ohm load or 19W per channel into a 4-ohm load. Key features include digital PWM inputs, robust short-circuit protection, and integrated thermal protection, ensuring reliable operation across a wide ambient temperature range of -40°C to 85°C. The TAS5602DCA operates from a supply voltage of 10V to 26V and is suitable for surface-mount applications. Its advanced design makes it a choice component for audio systems in consumer electronics and professional audio equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Digital PWM Inputs, Short-Circuit and Thermal Protection |
| Packaging | Bulk |
| Package / Case | 56-PowerTFSOP (0.240"", 6.10mm Width) |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 10V ~ 26V |
| Max Output Power x Channels @ Load | 20W x 2 @ 8Ohm; 19W x 4 @ 4Ohm |
| Supplier Device Package | 56-HTSSOP |
