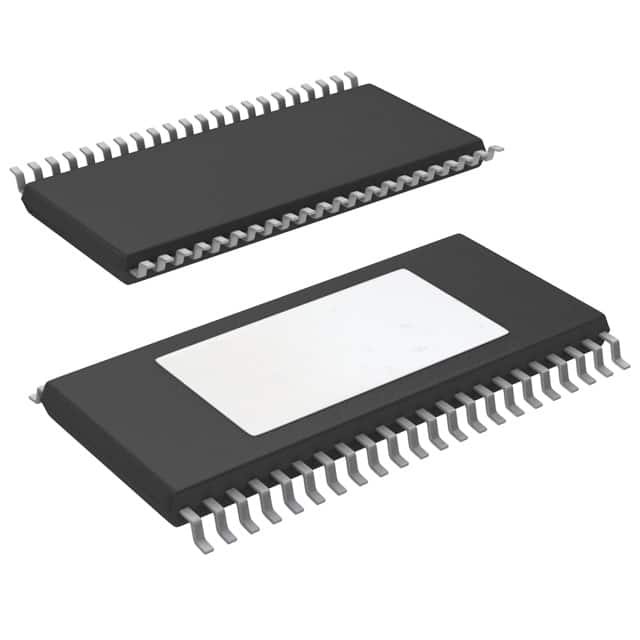

TAS5342DDVR
IC AMP D MONO/STER 200W 44HTSSOPManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments PurePath Digital™ TAS5342DDVR is a Class D audio amplifier IC designed for high-fidelity audio applications. This device offers flexible output configurations, supporting either 1-channel (mono) or 2-channel (stereo) operation. It delivers a maximum output power of 200W into a 2-Ohm load in mono mode and 100W per channel into a 4-Ohm load in stereo mode. Key features include digital PWM inputs, integrated short-circuit and thermal protection, and a shutdown function for power management. The TAS5342DDVR is housed in a 44-HTSSOP package, suitable for surface mounting. This component is commonly utilized in consumer electronics, automotive audio systems, and professional audio equipment. The operating temperature range is 0°C to 70°C. The device is supplied in Tape & Reel packaging.
Additional Information
Series: PurePath Digital™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 50 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Digital PWM Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-PowerTSSOP (0.244"", 6.20mm Width) |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 10.8V ~ 13.2V |
| Max Output Power x Channels @ Load | 200W x 1 @ 2Ohm; 100W x 2 @ 4Ohm |
| Supplier Device Package | 44-HTSSOP |
