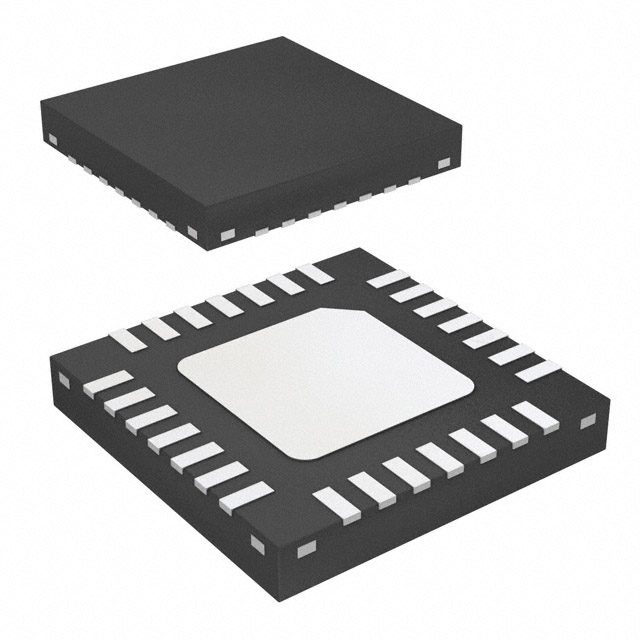

LM4960SQX
IC AMP CLASS AB MONO 28WQFNManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments Boomer® series LM4960SQX is a mono Class AB audio amplifier, delivered in a 28-WQFN (5x5) package on tape and reel. This surface-mount component offers integrated depop, short-circuit, and thermal protection, alongside a shutdown feature for enhanced system management. Operating across a 3V to 7V supply voltage range, the LM4960SQX is engineered for audio amplification applications. Its 28-WFQFN Exposed Pad package facilitates efficient thermal dissipation. This device is suitable for use in various consumer electronics and portable audio systems. The operating temperature range is specified from -40°C to 85°C (TA).
Additional Information
Series: Boomer®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 3V ~ 7V |
| Max Output Power x Channels @ Load | - |
| Supplier Device Package | 28-WQFN (5x5) |
