LM49370RLX/NOPB
IC AMP CLASS D MONO 1.2W 49DSBGAManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments Boomer®, PowerWise® series LM49370RLX-NOPB is a mono Class D audio amplifier IC. This 1-channel amplifier delivers 1.2W into an 8O load, with additional stereo headphone output capability of 52mW into 16O. Designed for surface mount applications, it utilizes a 49-DSBGA package. Key features include I2C and SPI interfaces for control, along with integrated microphone input, 3D audio enhancement, depop circuitry, mute, shutdown, standby, and volume control functionalities. Its operating temperature range is -40°C to 85°C. This component is suitable for portable electronics, audio systems, and consumer devices.
Additional Information
Series: Boomer®, PowerWise®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | 3D, Depop, I2C, I2S, Microphone, Mute, PCM, Shutdown, SPI, Standby, Volume Control |
| Packaging | Tape & Reel (TR) |

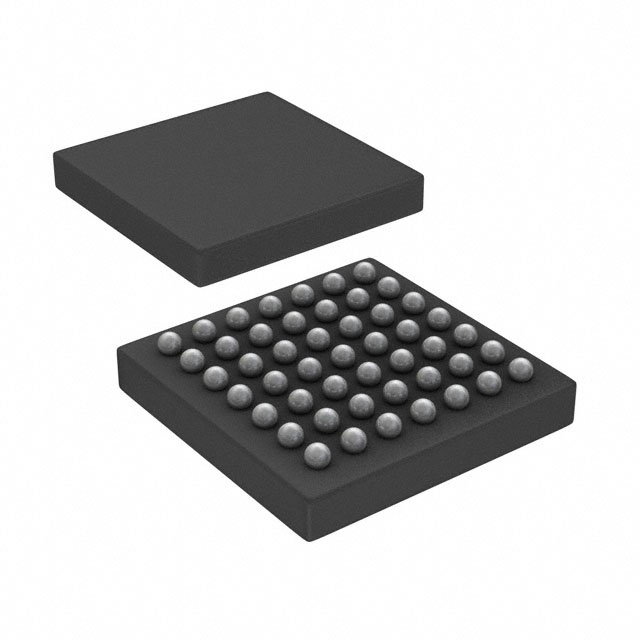

| Package / Case | 49-WFBGA, DSBGA |
| Output Type | 1-Channel (Mono) with Mono and Stereo Headphones |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Max Output Power x Channels @ Load | 1.2W x 1 @ 8Ohm; 52mW x 2 @ 16Ohm |
| Supplier Device Package | 49-DSBGA |
