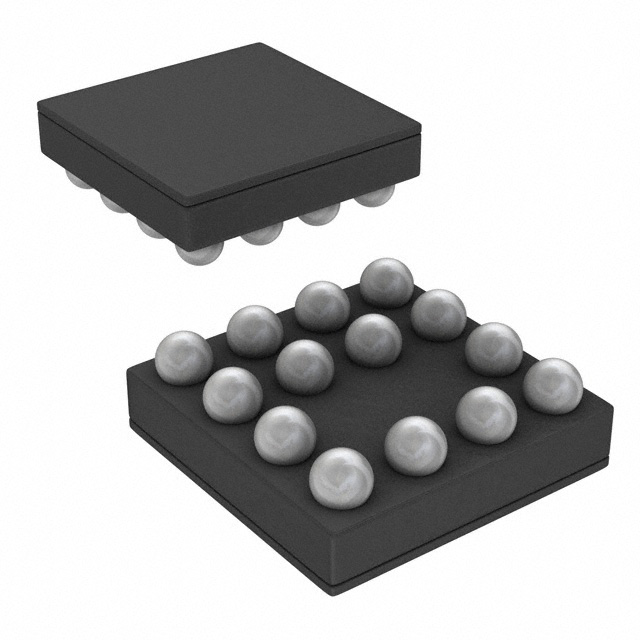

LM48820TM/NOPB
IC AMP CLSS AB STER 95MW 14DSBGAManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More
Texas Instruments Boomer® series LM48820TM-NOPB is a stereo, 2-channel Class AB audio amplifier IC. Designed for efficient headphone amplification, this component delivers 95mW per channel into a 16 Ohm load. Key features include integrated depop circuitry for smooth power-up and power-down transitions, a shutdown pin for power management, and thermal protection to ensure reliable operation. The LM48820TM-NOPB operates from a single supply voltage ranging from 1.6V to 4.5V. This surface-mount device is supplied in a 14-DSBGA package, presented on tape and reel. Its robust design makes it suitable for portable audio applications, consumer electronics, and mobile devices. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: Boomer®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Shutdown, Thermal Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFBGA, DSBGA |
| Output Type | Headphones, 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.6V ~ 4.5V |
| Max Output Power x Channels @ Load | 95mW x 2 @ 16Ohm |
| Supplier Device Package | 14-DSBGA |
