LM4811LDX/NOPB
IC AMP CLSS AB STER 105MW 10WSONManufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More

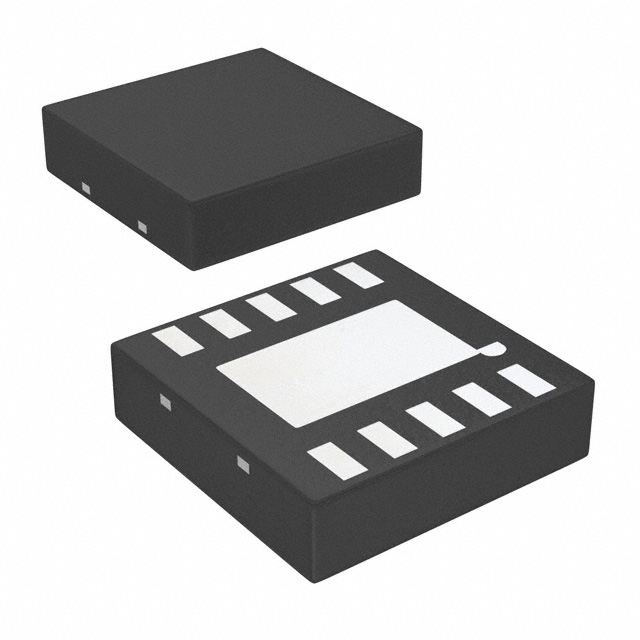

Texas Instruments Boomer® series LM4811LDX-NOPB is a stereo audio amplifier IC designed for headphone applications. This Class AB amplifier delivers 105mW per channel into a 16-ohm load. The 10-WSON (3x3) package with an exposed pad facilitates efficient thermal management. Key features include integrated depop circuitry, shutdown control, thermal protection, and volume control capabilities. The device operates from a 2V to 5.5V supply voltage and is suitable for surface mount applications. This component finds use in portable electronics and consumer audio systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: Boomer®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Shutdown, Thermal Protection, Volume Control |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Headphones, 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 5.5V |
| Max Output Power x Channels @ Load | 105mW x 2 @ 16Ohm |
| Supplier Device Package | 10-WSON (3x3) |
Request a Quote
