LM4766TF/NOPB
IC AMP AB STEREO 40W TO220-15Manufacturer: Texas Instruments
Categories: Audio Amplifiers
Quality Control: Learn More

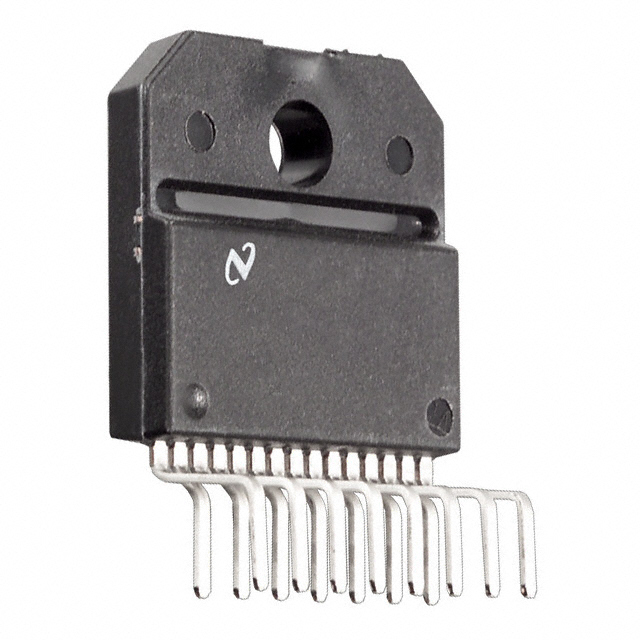

Texas Instruments Overture™ series LM4766TF-NOPB is a 2-channel Class AB audio amplifier IC. This device delivers 40W per channel into an 8-ohm load with a supply voltage range of 20V to 60V or ±10V to ±30V. Key features include integrated muting and a standby function for low-power operation, along with comprehensive thermal protection to ensure reliable performance. The LM4766TF-NOPB is housed in a TO-220-15 isolated package with formed leads, facilitating through-hole mounting. This amplifier is suitable for demanding audio applications across consumer electronics and professional audio equipment.
Additional Information
Series: Overture™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Mute, Thermal Protection |
| Packaging | Tube |
| Package / Case | TO-220-15 Isolated Tab, Formed Leads |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 20V ~ 60V, ±10V ~ 30V |
| Max Output Power x Channels @ Load | 40W x 2 @ 8Ohm |
| Supplier Device Package | TO-220-15 Isolated |
