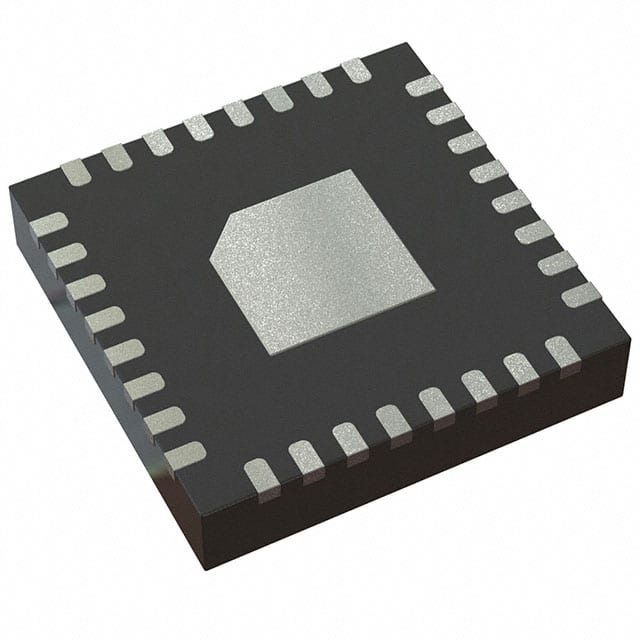

MSP430TCH5ERHBR
IC MCU 16BITManufacturer: Texas Instruments
Categories: Application Specific Microcontrollers
Quality Control: Learn More
Texas Instruments MSP430TCH5ERHBR is a 16-bit microcontroller featuring the TCH5E series. This application-specific microcontroller is designed for advanced Haptics and Capacitive Touch Controller applications. The device integrates a 16KB FLASH program memory and 512 x 8 RAM. It supports multiple communication interfaces including I2C, IrDA, LIN, SPI, and UART/USART, offering extensive connectivity options. With 24 I/O pins and a 32-VQFN (5x5) exposed pad package, it is suitable for surface mount applications. The operating voltage range is 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C. This component is commonly utilized in consumer electronics and industrial control systems.
Additional Information
Series: TCH5ERoHS Status: ROHS3 CompliantManufacturer Lead Time: 46 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | I2C, IrDA, LIN, SPI, UART/USART |
| RAM Size | 512 x 8 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Controller Series | MSP430 |
| Program Memory Type | FLASH (16KB) |
| Applications | Haptics and Capacitive Touch Controller |
| Core Processor | - |
| Supplier Device Package | 32-VQFN (5x5) |
| Number of I/O | 24 |
| Programmable | Not Verified |
