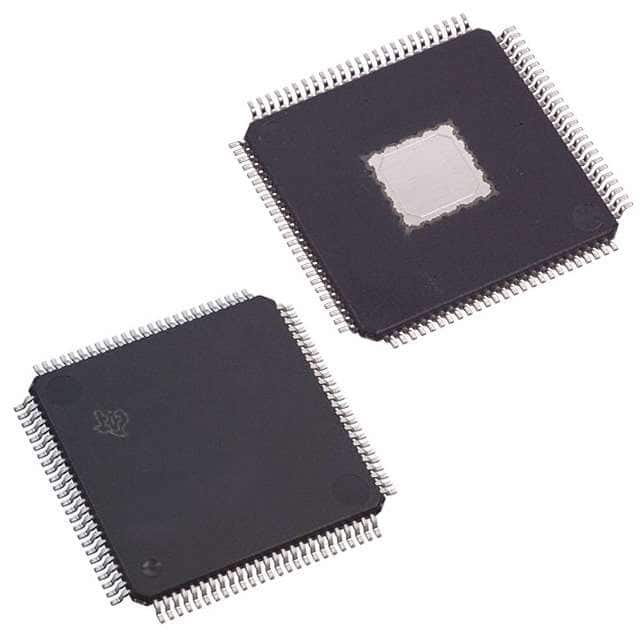

THS788PFDT
IC TIME MEASUREMNT UNIT 100HTQFPManufacturer: Texas Instruments
Categories: Application Specific Clock/Timing
Quality Control: Learn More
Texas Instruments THS788PFDT is a high-performance Time Measurement Unit (TMU) IC. This component operates with a maximum frequency of 200MHz, featuring LVCMOS and LVDS inputs, and LVDS outputs. The device includes a Phase-Locked Loop (PLL) and supports a 5:9 input-to-output ratio. Designed for surface mounting, it is supplied in a 100-HTQFP (14x14) package, delivered on tape and reel. The THS788PFDT is suitable for applications requiring precise time measurement and synchronization, commonly found in telecommunications infrastructure and high-speed data processing systems. Operating temperature range is 0°C to 70°C with a supply voltage range of 3.135V to 3.465V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 100-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Output | LVDS |
| Frequency - Max | 200MHz |
| Input | LVCMOS, LVDS |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Main Purpose | Time Measurement |
| Ratio - Input:Output | 5:9 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 100-HTQFP (14x14) |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
